Jaw Crushers-Shanghai Zenith
- 30 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
B Series Deep Rotor Vertical Shaft Impact Crusher, efficient crusher
-
pf series stone crusher/professional impact crusher plant by zenith
-
stone crusher /rock sand crushing machinery china
-
Professional Hcs cone crusher
-
India Stone Rock Crushing Machine, s series cone crusher,
-
cone crusher machine/professional Stone Rock Crushing Machine
Product Details
| Brand Name | zenith | Place of Origin | China | |
| Model Number | 1200x1500 |
Product Description

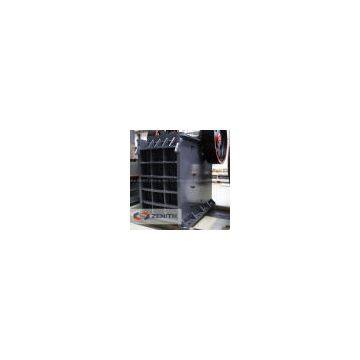

PE Series Jaw Crusher
Based on years' experience and technology development, Zenith jaw crusher series are of 6 different models, which can meet most crushing requirements in primary and secondary crushing. Flexible discharge opening setting of jaw crusher allows perfect match with relative equipments. Zenith jaw crusher is easy to install, operate and maintain. As per Feedback, our experts will make continuous improvements on our products to meet customers' changing needs. It is widely used in fields of mining, metallurgy, construction, smelting, hydropower and chemical industries etc.
Features
1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing;
3. The crushing chamber uses "V"-shaped structure, so that the feeding size equal to the nominal one;
4. The crushing chamber is deep and without dead zone, increases the capacity and the output;
5. Lubrication system is safe and reliable, convenient to replace parts, easy to maintain;
6. The outlet employs shim adjustment system, convenient and reliable, and increase the flexibility of the equipment;
7. Low noise, less dust;
Technical data
|
Model |
Feed Opening (mm) |
Max Feeding (mm) |
Discharge Opening (mm) |
Capacity (t/h) |
REV (r/min) |
Power (kw) |
Motor Model |
Machine Size (mm) |
|
PE200×350 |
200×350 |
170 |
20-50 |
2-6 |
220 |
6-7.5 |
Y160M-6/7.5 |
|
|
PE250×400 |
250×400 |
210 |
20-60 |
5-20 |
310 |
6-15 |
Y180L-6/15 |
1450×1315×1296 |
|
PE250×750 |
250×750 |
210 |
20-60 |
8-22 |
320 |
6-30 |
Y225M-6/30 |
|
|
PE500×750 |
500×750 |
425 |
50-100 |
45-100 |
275 |
6-55 |
Y280M-6/55 |
1890×1916×1870 |
|
PE600×900 |
600×900 |
500 |
65-160 |
70-120 |
250 |
6-75 |
Y315S-6/75 |
2520×1840×2303 |
|
PE750×1060 |
750×1060 |
630 |
80-140 |
130-260 |
250 |
8-90 |
Y315L1-8/90 |
2620×2302×3110 |
|
PE900×1200 |
900×1200 |
750 |
95-165 |
220-380 |
200 |
8-130 |
JR127-8/130 |
3789×2826×3025 |
|
PE1000×1200 |
1000×1200 |
850 |
195-265 |
230-380 |
200 |
8-130 |
JR127-8/130 |
3889×2826×3025 |
|
PE1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
220 |
8-200 |
YR355M4-8/200 |
4930×3150×3700 |
