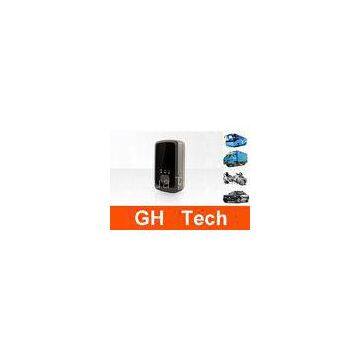

Emergency Portable GPS Tracking Device GSM PET GPS Locator , Two Digital Inputs
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Portable GPS Tracking Device Automotive Fuel Sensor GPS Tracker Long Standby
-
Asset Tracking Device Children Quad Band SMS GSM GPS Tracker
-
GPS car tracker system Real time car gps tracker with camera fuel sensor and temp sensor
-
Newest gps tracker device 3G WCDMA GPS Tracker sytem for Car / for truck / for ambulance and for bus
-
OBD2 gps tracking device Portable OBD2 GPS tracker for car produced after year-2000
-
SPY Tracking Device Mini Quad Frequency Car GPS Tracker System With GSM SIM 9 - 70V Voltage google g
Product Details
Brand Name | GH | Place of Origin | China | |
Model Number | G-T300 |
Product Description
Certification:CE ROHS
Portable gps tracking device GNSS SYSTEM Tracker G-T300 for lone worker vehicle asset tracking
applications
Advanced Asset Tracker
Attention:For this unit we do not offer platform,you need? to got your own tracking server,while we can offer protocol and guide you how to analyze the protocol.
Product Description:?
The water resistant G-T300 is a powerful GNSS locator designed for lone worker, vehicle, pet and asset tracking applications. The thumb sized button makes this device ideal for applications requiring rapid notification of emergency alert or regular setting of geo-fences based on current location. Its built-in GNSS receiver supports GPS and GLONASS and has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the G-T300\'s location to be monitored in real time or periodically tracked by a backend server and mobile devices. Its built-in 3-axis accelerometer allows motion detection and extends battery life through sophisticated power management algorithms. System integration is straightforward as complete documentation is provided for the full featured @Track protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery and scheduled GNSS position.
Features:?
Water resistant Quad band GSM/GPRS 850/900/1800/1900 MHz Embedded full featured @Track protocol Internal GSM/GNSS antennas Internal GSM/GPS antennas Thumb sized button allowing easier emergency alert or instant geo-fence setting Low power consumption, long standby time with internal battery Internal 3-axis accelerometer for power conservation and motion detection Full power management, can be connected to external DC power or battery FCC certifiedSpecification:??
GSM Specifications
Frequency? |
Quad band: 850/900/1800/1900 MHz Compliant to GSM phase 2/2+ -Class 4 (2W @ 850/900 MHz) -Class 1 (1W @ 1800/1900 MHz) |
GPRS |
GPRS multi-slot class 12 GPRS mobile station class B |
RMS Phase Error |
5 deg |
Max Out RF Power |
GSM850/GSM900: 33.0±2 dBm DCS/PCS: 30.0±2 dBm |
Dynamic Input Range |
-15 ~ -108 dBm |
Receiver?Sensitivity |
Class Ⅱ RBER 2% (-107 dBm) |
Stability of Frequency |
< 2.5 ppm |
Max Frequency Error |
±0.1?ppm |
GNSS Performance (using GPS and GLONASS)
GNSS Receiver Type |
72-channel u-blox M8 engine |
Sensitivity |
Autonomous: -147 dBm Hot start: -155 dBm Tracking & navigation: -162 dBm Reacquisition: -160 dBm |
Position Accuracy |
Autonomous: 2.5m CEP SBAS: 2.0m CEP |
TTFF (Open Sky) |
Cold start: 30s average Warm start: 28s average Hot start: 1s average |
Digital Inputs |
Two digital inputs One positive trigger for ignition detection One negative trigger input for normal use |
Power Button |
Power on and power off, can be disabled by the air interface protocol |
Function Button with Vibration Feedback |
Emergency alert or instant geo-fence |
GSM/GNSS Antennas |
Internal only |
Indicator LED |
GSM, GPS and battery status |
Mini USB Interface |
For external power and configuration |
Dimensions |
68.5mm * 38.5mm * 23.5mm |
Weight |
60g |
Battery |
