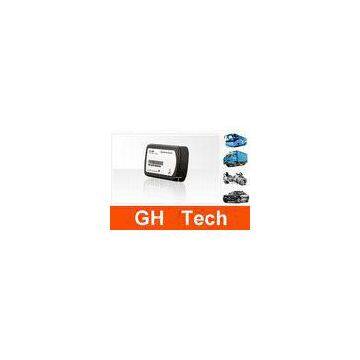

1000 Days car GPS tracker designed for fixed asset tracking applications systems

Frequency?

Quad band: 850/900/1800/1900 MHz

Compliant to GSM phase 2/2+

-Class 4 (2W @ 850/900 MHz)

-Class 1 (1W @ 1800/1900 MHz)

GPRS

GPRS multi-slot class 10

GPRS mobile station class B

RMS Phase Error

5 deg

Max Out RF Power

GSM850/GSM900: 33.0±2 dBm

DCS/PCS: 30.0±2 dBm

Dynamic Input Range

-15?~ -108?dBm

Receiver Sensitivity

Class Ⅱ RBER 2% (-107 dBm)

Stability Of Frequency

< 2.5?ppm

Max Frequency Error

±0.1?ppm

GPS Chipset

u-blox All-In-One GPS receiver

Sensitivity

Autonomous: -148 dBm

Hot start: -160 dBm

Tracking: -162 dBm

Position Accuracy

Autonomous: < 2.5m

SBAS: 2.0m

TTFF (Open Sky)

Cold start: 30s average

Warm start: < 30s

Hot start: < 1s

Audio

Internal microphone

GSM ?Antenna

Internal only

GSM ?Antenna

Internal only

Internal Indicator LED

GSM, GPS and battery status

Serial Port

Internal 8 pin connector for upgrading or debugging

Dimensions

80mm*58mm*26.8mm

Weight

65g (without batteries)

Batteries

Two CR123A lithium batteries 1500 mAh

Standby Time

Standby current: < 10 uA

SMS count: 1000 SMS

SMS reporting standby:

? ? ???? One SMS report per day: 1000 days

TCP reporting standby:

? ? ???? One report per day: 950 days

? ? ? ?? Four reports per day: 248 days

? ? ? ?? Five minutes reporting: 4 days

Operating?Temperature

-20℃?~ +60℃

Command Set

@Track protocol command

Simple SMS command

Transmit Protocol

TCP, UDP, SMS

Working Mode?

Power save mode, for long standby time

Continuous mode, for emergency tracking?

Scheduled Timing Report

Report position and status according to preset time schedules

Geo-fence

Support up to 5 internal geo-fence regions

Low Power Alarm

Alarm when internal battery is low

Motion Detection?

Motion alarm trigger and optional change of working mode

Wakeup Report?

Report when the device wakes up

Listening Mode

Incoming/outgoing call with white list sup
