Home > Products > GPRS Printer > New developing gprs internet thermal gprs printer easy operation can be used in hospital and restau

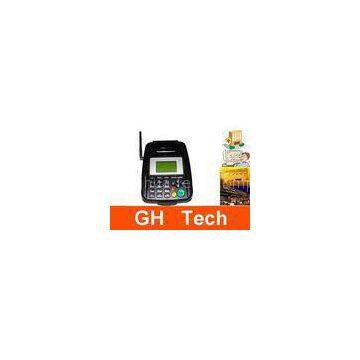

New developing gprs internet thermal gprs printer easy operation can be used in hospital and restau
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Ethernet Receipt Printer Hand Held GPRS Receipt Printer Device
-
Handheld GPRS GSM SMS Printer Restaurant Mobile Wifi Printer DC 12V/3A
-
Core Alignment Optical Fiber Fusion Splicer Nonzero Dispersion Displacement
-
1000MAh Battery IPX6 Mini Waterproof car GPS Tracker G-t011 with system For safe keeper bank worker
-
Fuel sensor temp sensor Car GPS Tracker System with camera , Over speed alerts
-
3G CDMA Car GPS Tracker System GPRS Anti Theft Automotive Tracking Device
Product Details
Brand Name | GH Tech | Place of Origin | China | |
Model Number | GH-G005 |
Product Description
New developing? gprs internet? thermal gprs printer easy operation can be used in hospital and restaurant
This GPRS Printer is?a highly platen?removal?mechanism, easy?loading?paper?and?maintenance? menu
?operation?interface,?easy?operation with 128*64 LCD display, 24 keys.
Highlights?????????
Comunication mode :GPRS/Ethernet
Print mode :thermmo sensitive
Pressing the key and then printing a queue number
?
Replaceable paper
Parameters:
Power souce :?? DC12V/3A
Storage temperature:-20~+80
Relative humidity :10%-95%
GSM frquency: GSM850/900/1800/1900MHz[optional]
Sensitivity: -102dBM
Transmitting power:<2w
Printing mode:thernisensitive
Width of printing paper :58mm
Valid printung paper: 48mm
Service life:50KM
Size 30*27*18cm
Weight :about 1.5kg
More details
Installation
?1.Insert valid? SIM card into SIM card seat
(Support GPRS function. For better GPRS data transmission, suggest prohibiting all voice and SMS functions in this SIM card)
2. Install GSM antenna
3. Connect power ?adapter
4. Switch on
GPRS/Ethernet Printer begins to initialize …
Keys OK Modem OK SIM Card OK Registering… |
It will take almost 20 seconds? to register. When registered successfully, GPRS Printer will try to connect server automatically.
Waiting…. Connecting to GPRS Server |
?For the first use, When GPRS Printer try to connect server, please press Con/Disc key to stop. Because of you should set some parameters.
Disconnecting… |
Settings
In the menu, you can make some settings through keyboard on GPRS Printer. When GPRS Printer stand by, press Menu key, you can enter into sub-menu.
Menu
GPRS APN
GPRS IP
GPRS Port
GPRS User Name
GPRS Password
Printer ID
Print Speed
Order Message
Date
Time
IMEI Code
Product Model
Restaurant Name
Restaurant Add
Restaurant Tel
Clear Settings
Settings for GPRS connection:
(1) GPRS APN:
1. In the sub-menu, press Up or Down key to move the cursor to GPRS APN, then press Menu key.
2. Press numeral keys (0key to 9key) to entry the letters; Press * key to insert symbols
3. Setting finished, press Back key to save and exit
Now, take CMNET.CN for example. CMNET.CN is the APN for china mobile.
1. In the sub-menu, press Menu key once
2. Press #key to capital letters. (ABC On the LCD, meaning capital letters)
3. Press 2key 3 times, C is ok;
Then, press 6key 1time, M is ok;
Then, press 6key 2 times, N is ok
Then, press 3key 2 times, E is ok
Then, press 8key 1 time, T is ok
Then, press *, then menu key, get the symbol of.?
Then, press 2key 3 times, C is ok
Then, press 6key 2 times, N is ok
4. Press Back key to save the settings and exit
Note: if wrong input, press Del key to delete the last letter
(2) GPRS IP:
1. In the sub-menu, press Up or Down key to move the cursor to GPRS IP, then press
Menu key.
2. Press numeral keys (0key to 9key) to entry the numbers; Press * key to insert symbols
3. Setting finished, press Back key to save and exit
Now, server IP address is 192.168.1.100.
1. In the sub-menu, move the cursor to GPRS IP, then press Menu key
2. Press # key to number. (123 On the LCD, meaning number)
3. Press 1key 1 time, 1 is ok;
Then, press 9key 1 time, 9 is ok;
Then, press 2key 1 time, 2 is ok
Then, press *, then menu key, get the symbol of.?
Then, press 1key 1 time, 1 is ok
Then, press 6key 1 time, 6 is ok
Then, press 8key 1 time, 8 is ok
Then, press *, then menu key, get the symbol of.?
Then, press 1key 1 time, 1 is ok
Then, press *, then menu key, get the symbol of.?
Then, press 1key 1 time, 1 is ok
Then, press 0key 1 time1, 0 is ok
Then, press 0key 1 time, 0is ok
