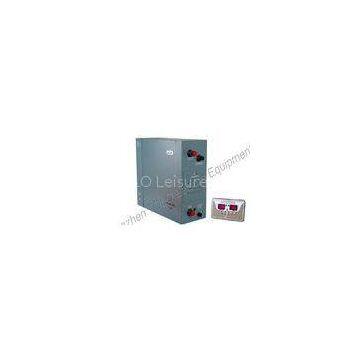

3 Phase bathroom Sauna Steam Generator 9kw 400v improving circulation

Brand Name	KSA		Place of Origin	China
Model Number	KSA-E90

Delivery Time:1-3 workdays
Certification:CE
3 Phase bathroom Sauna Steam Generator 9kw 400v improving circulation

Quick Detail:

Type: Wet Steam Sauna control panel: digital and optional Power output: 9.0kw voltage: 380V~400V Main Material: stainless steel tank, galvanizing and powder coated shell Color: grey green Current: 13.6A phase: 3 Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off Shape: Cuboid Size: 475*185*450mm Room volume(cubic meter): 8~11 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree

Steam out right along steam generators 9.0kw/400v /3phase with auto turn off for Turkish bath?

3 Phase Sauna Steam Generator 9kw 400v for 8~11 cubic meter

Choose our products will help you create a good image.

body made from aluminum with perfect flame plating. water tank is stainless steel to prevent rust and keep service life. multifunction controller makes you feel easy to operate. main feature : A. steam out right long when cold water fill in

????????????????? B. Auto turn off when reaches working time.

????????????????? C. Auto drain after power off

????????????????? D. self flushing heating element

????????????????? E. Intelligent to indicate fault with code

????????????????? F. Protect when overheating

???????????????? G. Auto power off when shortage of water

?????????? ??????H. intelligent to protect when overpressure of water tank

???????????????? I. Have pause function

Description:

This KSA-E series steam generator is our featured products.

It is born in 2008. After years of test, it is steady performance.

You don’t need to spend a lot of time to solve the problems like a new product.

What you can get is “Save Worry Save Trouble”!

1. Our KSA-E steam generators is automatic drain with a self flushing cycle to dump the boiler contents in a controlled manner - at the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the heating elements.
Electronic controls with a digital display to enable temperatures of 6 to 60℃ and time duration 1 to 60 min or continual operation .

The electronic control with on board diagnostics having a series of LEDs to show each operation of the steam generator. Each generator is fitted with 3 banks of heating elements to provide sequential heating (from cold all 3 banks operate for maximum power and rapid heating, when the steam room temperature is almost reached bank 1 stop, when the required temperature is achieved, bank 2 stop, then bank 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort).
?

What’s steam bath?

A steambath is an ancient type of bath, first made popular by the ancient Greeks and Romans. The origins of the steam bath come from the Roman bath, which began during the height of the Roman Empire. Ancient Roman baths served many community and social functions within Roman society. Everyone in Rome used Roman public baths, regardless of socioeconomic status.

Applications:

For 8~11 cubic meter residential and commercial steam baths

A daily steam bath is a remarkable way to indulge yourself. It causes the?perspiration that is the single healthiest thing you can do for your skin. Stress and?negativity?quickly dissipate in the soft clouds of intense yet comforting heat. A few?minutes?of?steam daily, in the comfort?of your own home, is an opportunity to?improve?your?overall well-being in every way.

Parameters:

Model

Power KW

Room volume (m3)

Power requirements?????????? 50/60Hz

Current? (A)

Power??????? wire (Copper)????????? N*mm2

Dimensions ?CM

Packing dimensions CM

Gross weight kg
