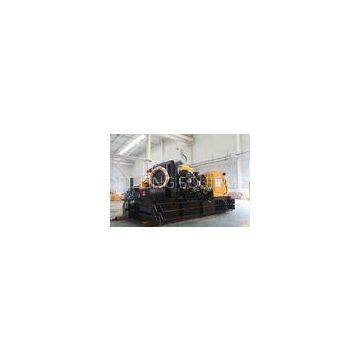

Hydraulic Surface Core Drill Rig Machine CSD1300H , BQ NQ HQ PQ Drill Rod
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Coal Mine Portable Drilling Rig , Multipurpose Core Drill Machine ZDY4000
-
Hydraulic Underground Portable Drilling Rig With 65KN Drill Head CKD600C
-
Hydraulic Underground Tunnel Portable Drilling Rig 350m Depth ZDY4000
-
Coalbed Gas Drilling Rigs , Directional / Horizontal Well Drill Machine CMD100
-
Mineral Investigation / Natural Gas Drilling Rigs , 100 Ton Pull CMD100
-
Diamond Core Coalbed Gas Drilling Rigs With Air Compressor CMD100
Product Details
| Brand Name | Cortech | Place of Origin | China | |
| Model Number | CSD1300H |
Product Description
Certification:CE, ISO9001
Hydraulic Surface Core Drill Rig Machine CSD1300H , BQ NQ HQ PQ Drill Rod
MAIN FEATURES:
CSD1300H core drilling rig is specially designed for surface wire line core drilling. Modularized design makes the rig easy to break down and put together, facilitating transportation to most inaccessible areas. Robust structure plus strong power ensures high penetration rate and out standing reliability. Its full hydraulic concept includes virtually all operation functions that prevail on the latest models around the world.
Specifications:
|
Drilling?Capacity? |
|
|
Dia?of?DrillRod |
?BQ,NQ,HQ,PQ |
|
Drilling?Depth |
??1,300m???1,000m??700m??400m? |
|
Hydraulic?System? |
|
|
??Pressure? |
?26MPa? |
|
?Cooling |
?Air?Cooled? |
|
?Power?System |
|
|
Model? |
?Cummins?6BTA-5.9? |
|
?Type |
?Turbo?Charged? |
|
Power? |
?132KW? |
|
?Engine?RPM |
?2,500rpm? |
|
Drill?Head |
|
|
Max?Torque? |
?4,257Nm? |
|
Max?Rotation?,RPM? |
?1,182rpm? |
|
Feed?Stroke? |
?2,000mm? |
|
Max?Inside?Diameter? |
?117mm? |
|
Max?Pull?/Max?Push |
?127KN/50KN? |
|
Main?Winch? |
|
|
Max?Pull? |
?68KN? |
|
Pulling?Speed? |
?50m/min |
|
Rope?Diameter? |
?16mm |
|
Rope?Length? |
?30m? |
|
Wireline?Winch? |
|
|
Max?Pull? |
?11KN(bare?drum) |
|
?Pulling?Speed |
?120m/min? |
|
Rope?Diameter? |
?6.6mm? |
|
Dump?Length? |
?1,000m? |
|
?Mast |
|
|
Length? |
?10m? |
|
Drilling?Angle? |
?45°-90°? |
|
Foot?Clamp? |
|
|
?Drill?Rod? |
?BQ,?NQ,?HQ,?PQ? |
|
Transporting?Dimensions? |
|
|
L×W×H? |
?4,700×2,150×2,000mm? |
|
Max?unit?weight?after?dismounting? |
|
|
?700kg? |
Competitive Advantage:
a.?We manufacture the best Hydraulic Drilling Rigs in China
b. Our products dominate more than 80% domestic market shares
c. We are the OEM of the UDR series drilling rigs
d. Our drilling rigs are now working in more than 30 countries all around the world
