Geological Prospecting Mining Surface Core Drilling Rig CSD1300H , Portable
- T/T L/C D/P D/A
- 7 days
You May Like
-
Surface Wire Line Core Hydraulic Drilling Rig , 1300m Depth CSD1300H
-
CSD1300H High Rate Core Drilling Rig For Surface Wire Line Core Drilling
-
Reverse Circulation Coalbed Gas Drilling Rigs Depth 320m - 3000m CMR1000A
-
Hydraulic Surface Core Drill Rig Machine CSD1300H , BQ NQ HQ PQ Drill Rod
-
Coal Mine Portable Drilling Rig , Multipurpose Core Drill Machine ZDY4000
-
Hydraulic Underground Portable Drilling Rig With 65KN Drill Head CKD600C
Product Details
| Brand Name | Cortech | Place of Origin | China | |
| Model Number | CSD1300H |
Product Description
Certification:CE, ISO9001

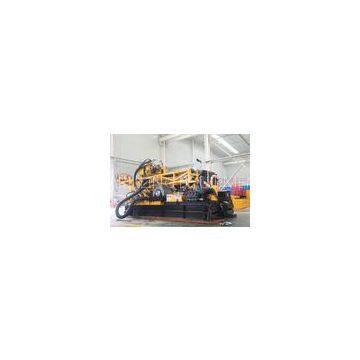

Geological Prospecting Mining Surface Core Drilling Rig CSD1300H , Portable
MAIN FEATURES:
CSD1300H core drilling rig is specially designed for surface wire line core drilling. Modularized design makes the rig easy to break down and put together, facilitating transportation to most inaccessible areas. Robust structure plus strong power ensures high penetration rate and out standing reliability. Its full hydraulic concept includes virtually all operation functions that prevail on the latest models around the world.
Specifications:
|
Drilling?Capacity? |
|
|
Dia?of?Drill Rod |
?BQ,NQ,HQ,PQ |
|
Drilling?Depth |
??1,300m???1,000m??700m??400m? |
|
Hydraulic?System? |
|
|
??Pressure? |
?26MPa? |
|
?Cooling |
?Air?Cooled? |
|
?Power?System |
|
|
Model? |
?Cummins?6BTA-5.9? |
|
?Type |
?Turbo?Charged? |
|
Power? |
?132KW? |
|
?Engine?RPM |
?2,500rpm? |
|
Drill?Head |
|
|
Max?Torque? |
?4,257Nm? |
|
Max?Rotation?,RPM? |
?1,182rpm? |
|
Feed?Stroke? |
?2,000mm? |
|
Max?Inside?Diameter? |
?117mm? |
|
Max?Pull?/Max?Push |
?127KN/50KN? |
|
Main?Winch? |
|
|
Max?Pull? |
?68KN? |
|
Pulling?Speed? |
?50m/min |
|
Rope?Diameter? |
?16mm |
|
Rope?Length? |
?30m? |
|
Wireline?Winch? |
|
|
Max?Pull? |
?11KN(bare?drum) |
|
?Pulling?Speed |
?120m/min? |
|
Rope?Diameter? |
?6.6mm? |
|
Dump?Length? |
?1,000m? |
|
?Mast |
|
|
Length? |
?10m? |
|
Drilling?Angle? |
?45°-90°? |
|
Foot?Clamp? |
|
|
?Drill?Rod? |
?BQ,?NQ,?HQ,?PQ? |
|
Transporting?Dimensions? |
|
|
L×W×H? |
?4,700×2,150×2,000mm? |
|
Max?unit?weight?after?dismounting? |
|
|
?700kg? |
Competitive Advantage:
a.?We manufacture the best Hydraulic Drilling Rigs in China
b. Our products dominate more than 80% domestic market shares
c. We are the OEM of the UDR series drilling rigs
d. Our drilling rigs are now working in more than 30 countries all around the world
