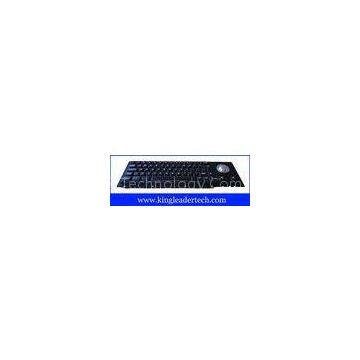

Electroplated black cherry keyswitch industrial metal keyboard MKB-63CA-TB-B

Electroplated black liquid-proof cherry keyswitch industrial metal keyboard? MKB-63CA-TB-B

?Key Features:

- Black face plate and keys with white legend/characters

- Panel mount
- 63 keys, built-in Cherry GmbH key-switches with integrated optical trackball;
- Full travel keys, excellent typing feel;
- Specially designed to operate in harsh environments, making them ideal for kiosks and other?? applications in public places.
- Built from stainless steel, resistant to vandalism, corrosive, rust
- Dust-proof and liquid-proof, IP65 compliant
- USB or PS2 interface available

- Custom layout available??

?Material:
?- Face plate: 304 stainless steel
- Keys: 304 stainless steel
- Trackball: 304 stainless steel (Dia: 38mm)

- Back plate: Aluminum ?

Electrical Data
?- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)

?Environmental Characteristics
?- Operating temperature: -20o C to + 60o C
- Storage temperature: - 40o C to + 80o C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40o C: 21 days, IEC 60512-6
- Dry heat test at + 85o C: 10 days, IEC 60512-6

Techanical Data

- Actuation force:80g
- Key travel: 4.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s2 -11 ms, IEC 60512-4

Operation system

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Reliability:

-MTBF:>20, 000 hours

-MTTR:<30 minutes

Dimension
-Face plate:372.00 x 102.00 mm

-Overall:394.00 x 123.80 mm

-Thickness:33.80 mm ( to where the tallest part extends)

?Weight: ?1.80 kgs
