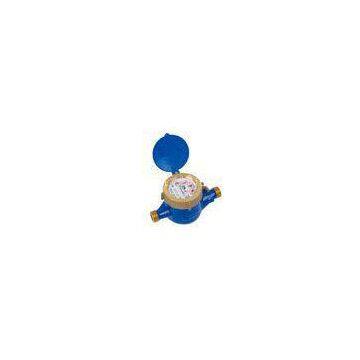

Household Water Meter / Vane Wheel Dry Dial Type Water Meter

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yongzhou		Place of Origin	China
Model Number	LXSG-15E

Product Description

Delivery Time:15-30days after receiving deposit
Certification:ISO9001:2008
DN15mm Household Water Meter / Vane Wheel Dry Dial Type Water Meter

Quick Detail:

1. Type name: Multi-jet dry-dial

2. Model No.: LXSG-15E

3. Standard :ISO 4064 Class B

4. Material: Brass

5. Feature :Inlet strainer and return valve is for option

6. 5digits with 4 pointers

Description:

Multi-jet Dry-dial Type Cold Water Meter DN15mm?

Product features:

Multi-jet ,Rotary vane wheel type

Dry-dial, Magnetic drive ,Resistance to exterior magnet interference

Material: Brass

Super dry type,brass shell,direct reading, external regulating device.

Magnetic drive, lower transmission resistance

Magnetic shield, for external magnetic field protection

Measuring accuracy is up to ISO4064, Class B for horizontal installation

Available with reed switch pulse output on request.

Installation requirements:

Meter should be installed in horizontal position with the register face upwards Pipe line must be flushed before installation The meter should be constantly full of water during operation

Main Technical data

Meter Size? DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Starting Flow	Min Reading	Max Reading
m3/h	????? L/h	m3
15	? B	??? 3	? 1.5	120	30	14	0.0001	99999
20	? B	??? 5	? 2.5	?? 200	?50	? 16	0.0001	99999
25	? B	??? 7	? 3.5	?? 280	?70	? 19	0.0001	99999
32	B	?? 12	? 6.0	?? 480	?120?	? 25	0.0001	99999
40	B?	?? 20	? 10	?? 800	?200	56	0.0001	99999
50	? B	?? 30	? 15	?? 3000	?450	? 70	0.0001	99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Specifications:

Type

?size

? B
