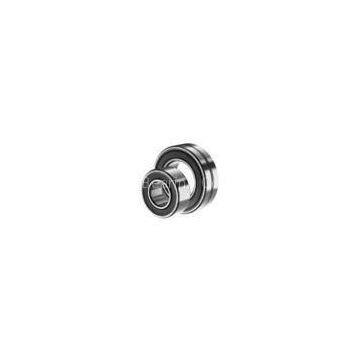

Mining Machinery Elevator Bearings 23122-2CS Sealed Spherical Roller Bearings for Reducer
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Spherical Roller Bearings with Seals 23218-2CS Self Aligning Roller Bearings Gear Box Air Blower
-
Engineering Machinery 23220-2CS Self Aligning Roller Bearings Rolling Mill Concrete Pump Truck
-
Metal Elevator Bearings 23222-2CS Spherical Roller Bearings for Wind Power
-
Agricultural Machinery 23224-2CS Elevator Bearings / Rolling Bearings Bucker Concrete Pump Truck
-
Durable Elevator Bearings 24020-2CS Spherical Roller Bearings GCr15 or GCr15SiMn
-
Rolling Mill BS2-2308-2CS Self Aligning Roller Bearings Elevator Bearings
Product Details
| Brand Name | WGB or OEM | Place of Origin | China | |
| Model Number | B23122-2CS |
Product Description
Certification:ISO9001:2008; ISO14001:2004
Mining Machinery 23122-2CS Spherical Roller Bearings Reducer & Agricultural Machinery
Description:
Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction. They are also extremely resistant to shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in purpose to Self-Aligning Double Row Ball Bearings, except the Spherical Roller Bearings are designed to be more robust by carry heavier loads but at lower maximum speeds. These bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. They are self-aligning because the center of curvature of the outer ring raceway surface coincides with the bearing axis.
Standard Spherical Roller Bearings are produced with straight bores; however, tapered bores are available upon request and may be mounted directly on tapered shafts. Pressed steel and machined brass cages are typically used.
The boundary dimensions of rolling bearings are the dimensions that define their external geometry and have been internationally standardized (ISO 15) and adopted by JIS B 1512 (Boundary Dimensions of Rolling Bearings).
Applications:?
1. Air-blower
2. Metallurgical and Mining Machinery
3. Engineering Machinery
4. Hoisting and Conveying Machinery
5. Paper Manufacturing Machinery
6. Textile Machinery
7. Elevator Tractor
Specifications
|
Brand |
WGB or OEM |
||
|
Name |
Spherical Roller Bearings |
||
|
Model |
Mining Machinery B23122-2CS Spherical Roller Bearings Reducer & Agricultural Machinery | ||
|
Material |
GCr15 or GCr15SiMn |
Certificate |
ISO9001:2008; ISO14001:2004 |
|
Precision |
P0, P6 |
||
|
Clearance |
C2, C0, C3, C4, C5, etc. |
||
|
Cage Type |
CA, CC, MB, EMA, E, etc. |
||
|
Seals Type |
2CS |
||
|
Package |
pallet, wooden case, industrial package or as customers\' requirement |
||
|
Price |
FOB, CFR, CIF |
Delivery Time |
30~60 days |
| Bearing No. | Boundary dimensions (mm) | Limiting speeds(r/min) | load ratings(KN) | Mass(kg) | ||||
| ｄ | D | B | rsmin | ? | Cr | Cor | ||
| BS2-2205-2CS | 25 | 52 | 23 | 1 | 3600 | 49 | 44 | 0.26 |
| BS2-2206-2CS | 30 | 62 | 25 | 1 | 2800 | 64 | 60 | 0.34 |
| BS2-2207-2CS | 35 | 72 | 28 | 1.1 | 2400 | 86.5 | 85 | 0.52 |
| BS2-2208-2CS | 40 | 80 | 28 | 1.1 | 2200 | 96.5 | 90 | 0.57 |
| BS2-2209-2CS | 45 | 85 | 28 | 1.1 | 2000 | 102 | 98 | 0.66 |
| BS2-2210-2CS | 50 | 90 | 28 | 1.1 | 1900 | 104 | 108 | 0.70 |
| BS2-2211-2CS | 55 | 100 | 31 | 1.5 | 1700 | 125 | 127 | 1.00 |
| BS2-2212-2CS | 60 | 110 | 34 | 1.5 | 1600 | 156 | 166 | 1.31 |
| BS2-2213-2CS | 65 | 120 | 38 | 1.5 |
