Product Details

Brand Name	SOFTEL.OEM		Place of Origin	China
Model Number	SR801

Product Description

Delivery Time:About 7 days
Certification:CE,ISO9000,RoSH

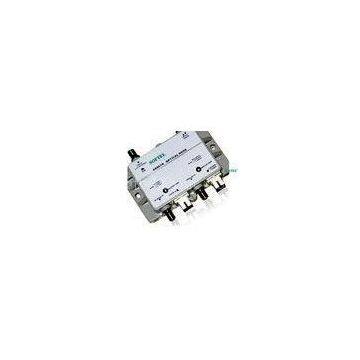

DC 12V Home CATV Optical Node 45dB Custom Connector , 1530nm - 1620nm

SR801 FTTH One Output Fiber Optic Receiver, 45/87 ~ 750/862 One Port CATV Optical Node

Quick Detail:
?

Brand Name: Softel Model Number: SR801 Item Name: SR801 Optical Receiver Frequency Range: 45/87 ~ 750/862Mhz, 54 ~1000Mhz Optical Input Range: -7 ~ +2dBm, -8~0dBm Wavelength: 1100 ~ 1600nm or 1530 ~ 1620nm Connector Type: SC/APC Fiber Type: Single mode Optical Return Loss: ≥45dB Power Voltage: DC12V/1A Optic Node Dimension: 130(L)x110(W)x35(H)? 150(L)x120(W)x35(H)

?
?
Description:
?

SR801 optical receiver is a special product only for fiber to the home (FTTH)network structure. The internal circuit of the special product with cast aluminum shell is compact and suitable; It’s the best choice for subdistrict or family optical fiber network, because it’s excellent performance indexes.

The impedance of forward RF output 1is 75Ω. Because of the -20dB input and output test port, engineering commissioning becomes more convenient. GaAs amplifier is used. There is optical power test port(1V/1mW). The power is supplied by 12-15V direct voltage (stand-by power supply). There are downlink SC/APC and uplink SC/PC optical interfaces.

Specifications:

Items	Unit	SR801	SR801B
Optical Parameter
Optical Input Range	dBm	-7 ~ +2	? -8~0
Optical Return Loss	dB	> 45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Fiber Connector Type		SC/APC
Optical Fiber Type		Single-mode
Downlink Performance
Frequency Range	MHz	45/87 ~ 750/862	54 ~1000
Flatness in Band	dB	±0.75	±0.75
Nominal Output Level	dBμV	85?? －2dBm Input	81??? -4dBm Input
Output Return Loss	dB	≥ 15	≥ 15
C/N	dB	≥ 50?? -2dBm Input	≥ 48?? -4dBm Input
C/CTB	dB	≥ 65?? -2dBm Input	≥ 65?
