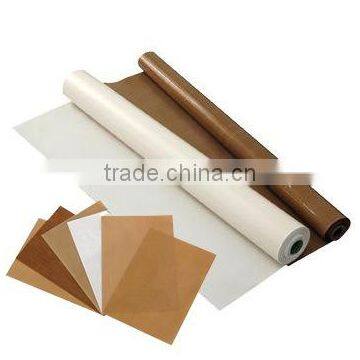

PTFE Coated Fabric, PTFE Fiberglass Fabric/cloth, Polyester Antistatic Fabric

Specifications

PTFE Coating Fabric/Cloth

      fiberglass fabric  use best imported Fiberglass yarn as the weaving material to

plain knit or specially knit into superior fiberglass basic cloth, coat it with fine

PTFE(Teflon) resin then make it into various PTFE(Teflon) fabric in different

thickness and widths.

1.fiberglass fabric applications:

fiberglass fabric could be used as various of liners to resist high temperature, such as microwave liner, oven liner, or other liners. used as non stick liners, intermediate. used as various conveyor belts, fusing belts, sealing belts or anywhere need resisting high temperature, non stick, chemical resistance etc. used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant etc.

2 .Description:

PTFE fabrics, or heat sealing fabrics, consist of a woven fiberglass and are coated with a PTFE resin. They are extremely resistant to high temperatures, contain outstanding electrical properties, have excellent release surfaces and superior chemical resistance.

PTFE fabrics come in a variety of grades such as standard grade, premium grade, mechanical grade, porous grade, anti-static grade, and tear and crease resistant grade.

3.Specifications:

1).width:  1250mm

2).Thickness:0.08mm, 0.13mm,0.18mm,0.25mm

3).Weight(sqm):140g/m²-1250g/m²

4). heat resistance property— able to Standing temperature:-60°C-260°C

5).excellent non-sticky property- it easier to remove those resin, dope, oil and other sticky things.

6).Weave type: plain weave

4.color:

Black, White, Gray, Brown ,Tan

5.fiberglass fabric  general properties:

  1. Outstanding temperature resistance(from -70°C to +260°C)

  2. Excellent chemical resistance

  3. Superior non-stick surface, easy to clean

  4. High dielectric strength

  5. Dimensional stability

  6. Resistance to UV, IR and HF

  7. Non-toxic
