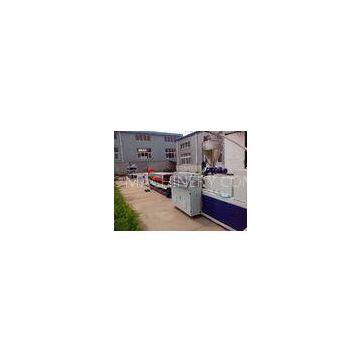

PVC Plastic Pipe Production Line , Plastic Extrusion Equipment

Brand Name	AORUI		Place of Origin	China
Model Number	SJSZ-65/33

Delivery Time:30 days
Certification:CE UL CSA

PVC Plastic Pipe Production Line , Plastic Extrusion Equipment

Quick detail:

?Pipe material: PVC

?Type: pipe production line

?Voltage: 380V

?Condition: New

?Application: pipe

?Certification: CE UL CSA

?Screw design: double screw

?Pipe diameter: 50mm 63mm 75mm 90mm 110mm 125mm ect

?Screw model: SJSZ65/33

?Max.output: 300kg

?The install power : 160KW

?Guarantee period : 1 year

?Brand name : AORUI

?Application: It is widely used in communication, pavement of electric wire and cable ,jacket of bridge wire

rope ,agricultural irrigation ,urban (water supply)drainage and architecture fluctuation water system.

Description:

1. Two high efficient co-extrusion double screw extruders 2. It adopts excellent screw and new groove sleeve design, which makes the extruder with bellow advantages: high plasticization rate,smooth melt, stable production process, and enable the inside and outside layer of the pipe to use different materials . 3. Corrugation forming block is made by special alloy material. It has high precision, intensity and outstanding heat emission. 4. Nitrogen treatment of the mould surface. There is wall thickness adjusting device in the mouth mould and can produce pipes of different raw materials. 5. It has a flaring function, which can reduce the investment and enhance efficiency. 6. The production line adopts advanced Simens PLC control system, with human-machine interface operating system, has high automaticity, easy operation.

7. The mould die is of high precision and the mould blocks are changeable. There are two cooling modes

to the mould block, by water and by fan. The planetary cutting machine is of high cutting precision; SIMENS

human-machine interface control system realizes high automation. The production line is able to produce

PE double wall corrugated pipe.

8. The extruder can be designed according to the different materials; HDPE material uses high efficiency

single screw extruder, the PVC material uses large conical?double-screw extruder or double-screw extruder

Specifications:

Model	Main Machine (extruder)	Quantity of Module	Specification of Pipe(mm)
SDSB 160	SJ 65/33×2 (PE)	40	Φ50-Φ160
SJSZ 51×105, SJSZ 65×132 (PVC)
SDSB 800	SJ 150/35×2 (PE)	40	Φ400-Φ800

Applications:

The pipes are widely used in the fields of electricity wire sleeve, urban water supply and drainage system,

agricultural irrigation pipe, underground filtration irrigation and the water supply or drainage system in buildings, etc.

Competitive Advantage:

1. Pipe Diameter 50-800mm

2.High Efficient Single Screw Co-Extruder

3.Definitely Impressing Quality and Price
