Model-purpose WF Series Cyclone Pulse Dust-collecting Fine Pulverizer For Magnetic Material, Powder
Negotiable
/ Set
1 Set(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
60-450 Mesh Cyclone Pulse Dust-collecting Fine Pulverizer Machine for Pharmaceutical, Chemical Mater
-
60-200 Mesh 550kg-2800KG Dust-collecting Pulverizer Machine for Fiber or Grease Materials Crushing
-
20-200 Mesh Herbs Medicine Dust Collecting YF Pulverizer Machine With Air Cooling, Screen-free For F
-
200-1800 Mesh10L,50L,100L Crushing and Vibrating Mill Water Cooling Pulveriser Machine, WFM Series C
-
300-2000 Mesh Airflow Brittle Material Ultra-fine Crushing Pulverizer Machine QS-100 For Chemical, F
-
200-1000 Mesh Inner-Grading Mechanical 11kw, 30kw, 75kw Grinding Pulverizer Machine JCFJ Series
Product Details
| Brand Name | Hongda | Place of Origin | China | |
Product Description
Main Application :
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust collecting and continuous discharge into a unit.
Working Principle :

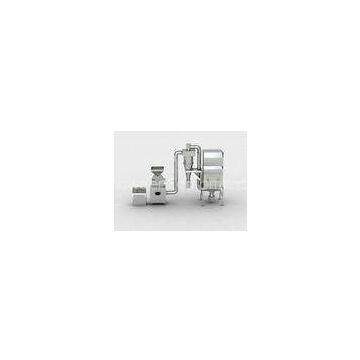

This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and induced fan etc., Material is fed into chamber through the hopper, and crushed by high speed rotating hammers. The crushed material flows into the cyclone separator by the induced fan and rotating centrifugal force, then discharge through gate blower, dust comes into the pulse dust-collecting box, filtrated and recycled by the filter cylinder. The crushing size can be adjusted by the screen. Designed by the standard of \"GMP\" the whole machine is made of stainless steel, and there is no flying dust during the process of production.
Technical Parameters :?
| Model | Production Capacity | Feeding Size | Crushing Fineness | Crushing motor | Dust collecting motor | Discharge motor | overall dimension | weight |
|---|---|---|---|---|---|---|---|---|
| WF-250 | 50-100kg/h | ≤5mm | 80-400mesh | 5.5kw | 2.2kw | 0.75kw | 3000*880*2350mm | 580kg |
| WF-350 | 80-300kg/h | ≤5mm | 80-400mesh | 11kw | 3kw | 0.75kw | 3550*880*2350mm | 800kg |
| WF-450 | 100-500kg/h | ≤5mm | 80-400mesh | 15kw | 4kw | 0.75kw | 4200*880*2350mm | 1200kg |
| WF-650 | 300-1000kg/h | ≤5mm | 80-400mesh | 22kw | 5.5kw | 1.5kw | 6560*1100*2480mm | 2000kg |
| WF-850 | 500-2500kg/h | ≤5mm | 80-400mesh | 37kw | 11kw | 2.2kw | 7800*1100*2480mm | 3000kg |
