Customize Communication Enclosures For 48V DC Rectifier Module

FOB Price

USD $1 - $5$ / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Runze		Place of Origin	China
Model Number	ST-045

Product Description

Delivery Time:15-20 days
Certification:ISO 9001:2008

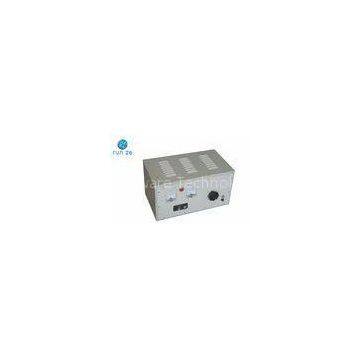

Customize Communication Enclosures For 48V DC Rectifier Module

48V dc rectifier module for Telecom

1: Input 110/220/380VAC,50/60hz
2: Output 5V/12V/15V/24V/48VDC
3: Customize Design

Quick Detail:

Output Power	48W to 9600W
Output Type	Single?
Input Voltage	110VAC or 220VAC or 380VAC?
Output Voltage	5V/12V/15V/24V/48VDC?
Output Frequency	50HZ/60HZ?
Output Current	1A to 200A?
Input	110VAC or 220VAC or 380VAC?
Input frequency	50HZ/60HZ?
Output	12V/15V/24V/48VDC?
Power	48W to 9600W?
Dimension	19inch rack mounting or stand alone type
Customize Design	Yes?
Swiching	AC to DC?
Product type	High Frequency Switching Mode Power Supply

Description:

can customize any input and output switching mode power supply according to your request For example

1.???? 48VDC 10A, 48VAC 15A, 48VDC 20A, 48VDC 30A, 48VDC 50A

2.???? 24VDC 20A, 24VDC 30A, 24VDC 40A, 24VDC 50A

rectifier ,48Vdc rectifier ,rectifier module Character

Wide input voltage range DC output voltage adjustable High precision voltage regulation Low output noise ripple Intelligent fan Strong protection function Limiting Output Power Protection/Over current and Short-circuit Protection/ Input Over voltage and Under voltage Protection /Output over voltage protection/Output limiting current protection/ Over temperature protection/High efficiency, small volume and light weight

?rectifier , 48Vdc rectifier , rectifier module Specification

Item	Performance Parameter	Test Condition
Input Voltage	AC:220V
Input Voltage Range	AC:176V~280V	Output Full-load
Start up Surge	<12A	Output Full-load
Input Current	8A	Output Full-load ,Input220V
Output Float Charging Voltage	53.5V	Factory Settings
Output Equal Charging Voltage	56.5V	Factory Settings
Output Voltage Range	48V: 40~58VDC Adjustable	59.0V over voltage protection, need to restart
Output Current	20A	Output Limiting Current (101%-105%)
Power Grid Regulation	±0.1%max	Output zero load to full load
Load Regulation	±0.5%max	Output zero load to full load
Dynamic Response	100usmax	20%~100%load
Output Phone Constant Weight Noise	<2mV	Noise Meter
Output Peak Noise	≤200mV	0~20MHz
Efficiency	>88%/>87%
Working Frequency	160KHz
