Product Details
| Brand Name | GB-Link/OEM | Place of Origin | China | |
| Model Number | GB-X2-LR |
Product Description
Certification:UL, CE,ROHS, FCC, TUV

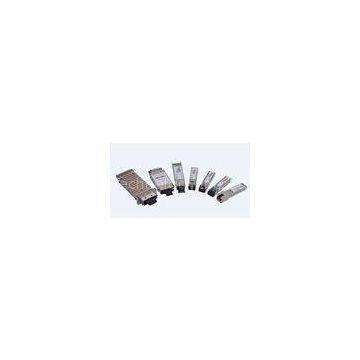

10GBASE-LR Fiber optical X2 Module Uncooled 1310nm DFB laser
Quick Detail:
|
Product part Number |
Data Rate (Gbps) |
Media |
Wavelength (nm) |
Transmission Distance(km) |
Temperature Range(Tcase)(℃) |
|
|
GB-X2-LR |
10G |
Single mode fiber |
1310 |
10 |
0~70 |
commercial |
Description:
GB-LINK’s 10Gb/s X2 transceiver module GB-X2-LR is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA. The GB-X2-LR is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and De-mux with clock and data recovery(CDR).This version of GB-LINK Inc. transceiver line uses an uncooled 1310nm DML Laser Diode to achieve 10km over standard single mode fiber as 10GBASE-LR of the IEEE 802.3ae.?
Applications:?
10GE Ethernet switches and routers 10GE Core-routers 10GE Storage Other 10Gbps Ethernet Transmission SystemSpecifications
PRODUCT FEATURES
XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s Uncooled 1310nm DFB laser and PIN receiver Hot Z-Pluggable SC-Duplex Optical Receptacle MDIO, DOM Support Compliant to X2 MSA Compliant to IEEE 802.3ae 10GBASE-LR Application Case operating temperature: 0 to 70 °CCompetitive advantage:
?
