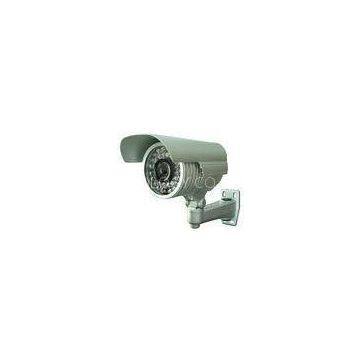

SONY 639 CCD + S3000 DSP, 700TVL 24 Pearl IR LED, 70meters IR Distance, Vari-focal 9-22mm Lens HD CC

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BOSCOM		Place of Origin	China
Model Number	BS-309H

Delivery Time:5 DAYS
Certification:CE ROHS

SONY 639 CCD + S3000 DSP, 700TVL, 24 pearl IR LEDs, 70M IR Vari-focal 9-22MM LENS METAL CASING HD CCTV Cameras

*?1/3?SONY 639 CCD + S3000 DSP, 700TVL?high?resolution

*?0.1?LUX?/color?illumination,?0?LUX?IR?ON

*?24 pearl?IR?LED,?70meters?IR?distance

*?90#?full?metal?casing,?IP66?waterproof?level

*?Vari-focal 9-22mm lens

*?Special?waterproof?/?Anti-cutting?bracket?included

*?Double?glass,?anti-fog?design

Specifications:

Model	BS-309H
Filter	Double?Layers?Crystal
Sensor	1/3″?SONY 639 CCD + S3000 DSP
Signal	PAL	NTSC
Pixels	752(H)×596(V)?570K	698(H)×496(V)??480K
Line	700TV
Illumination	0Lux?/?IR?ON
Lens	f=?9-22mm?Lens
IR?LED	24pcs pearl?High?Power?IR?LED
IR?Distance	70?Meter
Vertical	50Hz	60Hz
Horizontal	15.625KHz	15.734KHz
Clock	28.375MHz	28.636MHz
Scanning	2:1?Interlace
S.N.R	≥50dB
E.S	1/50-1/100,000s	1/60-1/100,000s
W.B	Auto?Tracking
B.L.C	ON
A.G.C	ON
Gamma	0.45
Video?Output	1Vp-p,?75Ω
IP?Rating	IP66
Bracket	waterproof?Especial?Bracket
Power?	DC/12V
