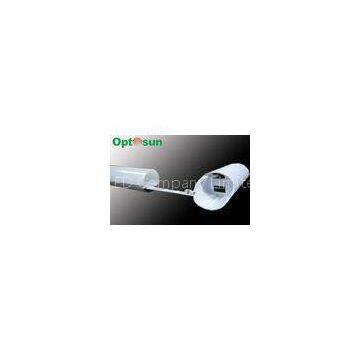

Brightness 22W 5ft T8 Natural White SMD LED Tubes 2200lm , SMD2835 CE RoHS Office LED Tube

Brand Name	Optosun		Place of Origin	China

Delivery Time:Sample order:3-5working days Mass order:7-15working days
Certification:CE ROHS

Brightness 22W 5ft T8 Natural White SMD LED Tubes 2200lm , SMD2835 CE RoHS Office LED Tube

Quick Detail:

self-produce 2835SMD T8,150cm,22w,0.2W/LED Warm white/Natural white/Cold white CE RoHS approved 120degree Beam Angle 3 years warranty 85-277VAC

Description:

Input voltage:AC85V~277V Luminous Flux (lm):2200lm? Special heat sink design of LED tube can considerably reduce body temperature so that assure its lifespan over 50,000 hours. Tube Material:Aluminum+Clear/Milky/Clear PC cover Beam angle:120degrees LED Quantity:120pcs (SMD2835) Size:150cm/5ft(T8)

Specifications:

Power	22W
Input Voltage	AC85V~277V
Luminous Flux (lm)	2200lm
CRI	80
Size	150cm/5ft(T8)
LED Quantity	120pcs (SMD2835)
Tube Material	Aluminum+Clear/Milky/Clear PC cover
Beam angle	120degree
CCT	2700-6500K

Applications:

1. Supermarket

2. Production line

3. Fitting shop

4. Processing workshop

5. Store

6. Advertising lamp box

7. Office lighting, etc.

Competitive Advantage:

1. Using self-produce high power 2835 SMD with super bright and competitive price.

2. Energy conservation and environmental protection. LED tube could conserve more than 80% power compare with conventional lamp tube.

3 There will be no UV ray and infrared and contains no mercury in LED tube, with light emitting diode (LED) working as its lighting source.

4 Special heat sink design of LED tube can considerably reduce body temperature so that assure its lifespan over 50,000 hours.

5. Integrated design (heat sink is lamp shell) ensure request for heat conduction and elimination of LED and its life.

6. Large heat emission area will keep Tj<50°C (Ta=25°C) when LED working.

7. Creative optical design brings excellent illumination evenness.

Installation procedure:

1.Remover old tube and ballast

2.Remove starter and shortcut the ballast(for saving more energy)

be adequate for ?inductive ballast

step1

step2

Step3

Step4

Working picture:

?Package:

Certificates:
