Home > Products > RF Terminator > 100W RF Termination Dummy load 50ohm 3GHz/4GHz/6GHz 18GHz

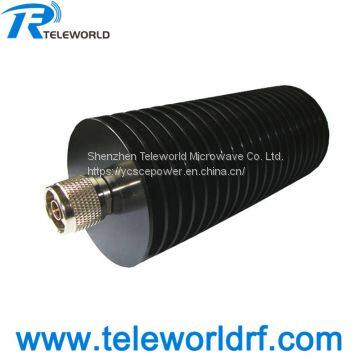

100W RF Termination Dummy load 50ohm 3GHz/4GHz/6GHz 18GHz

FOB Price

US$ 45 - 45 / Piece

10 Pieces(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

For low power Termination Load we can do frequency up to 67Ghz
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
5W-30W SMA Termination Load can work up to 26.5GHz
30W-100W SMA/N type termination can work up to 18GHz,
For high power 100W-500W DC-18GHz Termination, many customers turn to us for a replacement of Weinschel.

The advantages are Reliable quality

Competitive price

Very short delivery (For example, 0-60db chips are designed and fabricated in-house, most models are stocked with raw materials)

? ?Quick response from our inside sales team

Applications:

50 ohms 100W RF Termination,dummy load

1.Low VSWR of 100W RF Load
2.Wide Frequency Range of RF Termination
3.OEM is OK

Coaxial fixed dummy load absorb RF/Microwave energy and are commonly used as dummy loads of antenna and transmitter. They are used as match ports in many multiport microwave device such as circulator and directional coupler to make these ports which are not involved in the measurement be terminated in the characteristic impedance in order to ensure an accurate measurement.

100W RF load termination Technical Specifications:
NORMINAL IMPENDANCE	50Ω	FREQUENCY RANGE	DC to 3.0GHz
VSWR	1.20 Maximum	POWER RATING	100 watts average
TEMPERATURE RANGE	-55°C to +125°C
