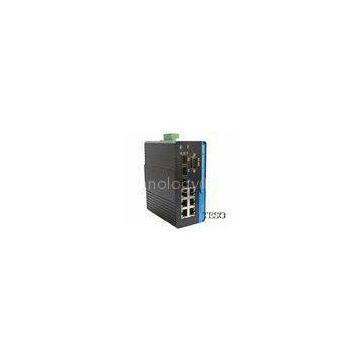

DIN Rail 24 VDC Optical Ethernet Switch IP40 , Industrial Type

Quick Detail:

* 10/100/1000M fast Ethernet switch, Industrial type

* single mode or multi mode is optional ?

* 3X1000Mbps SFP ports +6X10/100Mbps RJ45/TX/UTP port+ 1XRS-485 Data port.

* dual power supply

* Support Ring Network designed

10/100/1000M DIN-Rail Managed Industrial Ethernet Switches

TES0-IES3065 is a managed Layer 2 + industrial Optical Ethernet switch with 3*1000Mbps SFP ports, 6*10/100Mbps electrical ports and 1*RS-485 Data port. It is designed to meet the various industrial application needs, and provide an industrial Ethernet network communication solution with a high performance-price ratio. TES0-IES3065’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission. It also features powerful Web-based, CLI management capabilities, wide input range dual power supply and its support for DIN rail and panel mounting for installation in the industrial environment.

?Ring Protection designed specifically for industrial applications, to provide a fast Ethernet ring protection and recovery within 15ms.From the management console, uses can choose any port (normal Ethernet port or trunk port) to form an Ethernet ring for faster recovery and wider bandwidth.

Key Features

* 6x10/100BaseTX Ports + 3x1000BaseFX SFP Ports + 1xRS-485 Data port ?

* Ring Protection, Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for Ethernet ring protection and quick recovery

* 8K address table for auto-learned unicast addresses

* 4K VLAN, supports 802.1Q, port based, protocol based VLAN, as well as Generic Attribute Registration Protocol (GARP) and GARP VLAN Registration Protocol (GVRP) for flexible network planning and management

* Flexible load distribution control and fail-over function

* Manual, static and dynamic port Static and dynamic port aggregation for bandwidth management

* Port rate limit, broadcast storm control, port mirroring, rich Quality of Service (QoS) features for data traffic control and management

* Blackhole MAC address filtering, static and dynamic MAC address management for network security

*? Access Control Lists(ACL)

* Secure Shell (SSH) v2.0

* IGMP snooping

* SNTP, SMTP

* SNMP V1, V2c, V3

* Supports RMON statistics, history, alarm and event

* Web-based network management interface

* Supports port and VLAN management

* On-line firmware upgrade

* Two privilege level accounts

* Syslog

* Dual power input for high reliability

* DIN rail or panel mounting for easy installation

Performance

802.3 10Base-T Ethernet

802.3u 100Base-TX and 100Base-FX fast Ethernet

802.3x Flow Control and Back Pressure

802.1p Class of Service

802.1Q VLAN Tag

802.3ad LACP

802.1d STP

802.1w RSTP

?????? ? ? ?? 802.1x

* Non-blocking store-and-forward shared-memory switch architecture

* MAC address:8K

* Network management: Web-based, CLI

* Fast Ethernet Ring Protection: recovery time within 15ms

* Firmware upgrade: Web, online?

Port configuration

* RJ45 Port: Auto-negotiation, 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters.

* 1000Base-FX Optical Port: SFP port

* Single-mode:20, 40, 60, 80,100, 120Km,optional, depend on your SFP module

* Multi-mode: 2, 5Km ,optional, depend on your SFP module

* Wavelength: 850nm, 1310 nm, 1550nm

* DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45

* Alarm output interface: One relay alarm output. Support power, port link and ring network alarm

* Indicator: Port link, ring fault/abnormity alarm indication 10/100/1000M Rate, run indication

Power requirements

* Input Voltage: 24 VDC (18 to 36VDC), Redundant double power input

* Input Current: <0.24A@24VDC

* Overload Current Protection

* Support dual power backup

* Support dual power alarm input

* Connector: 6 pin terminal

Environmental limits

* -40°C ~ + 80°C( Wide Temperature)

* Storage Temperature:-40°C ~ + 85°C(-40 ~ 185°F )

* Humidity: 5% ~ 95%

Mechanical Dimension

* Dimensions: 60.5 x 118 x 140 mm

* House Protection: IP40 protection, Alumini
