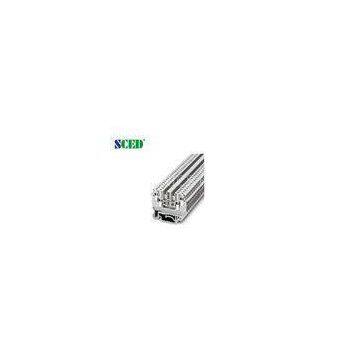

AWG 24 - 10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 30 - 10 600V 30A
-
8.2mm 600V 50A AWG 26 - 8 Din Rail Mounted Terminal Blocks for Electric Lighting
-
10.2mm Rail-Mounted Terminal Blocks , AWG 24 - 6 600V 65A Barrier Terminal Block
-
2P - 22P 7.62mm 300V 10A Barrier Terminal Block For PCB , Frequency Converters
-
Pitch 7.62mm 300V 15A Barrier Terminal Block 2P-24P with Right Angle Wire Inlet
-
width 12.2mm AWG 22 - 4 Grey Din Rail Terminal Blocks for Electric Lighting 600V 85A
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TR-4N |
Product Description
Certification:UL, CE
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
?
Detailed product Description:
?
AWG 24-10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks
?
■Right angle wire inlet;? □Vertical wire inlet;? □45 degree wire inlet
■Single Level;? □Double levels;? □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
?
?
How to order:
?
?
??
Parameter and Drawing Specifications:
Description??????????????????? Color | Type |
Terminal?????????????????????? Grey? | TR-4N |
End Cover????????????????????? Grey? | D-TR-4 |
Fixed Bridge | FBRI 10-6 ???????Imax: 34A |
Insertion Bridge | EB ?10-6 ???????Imax: 34A |
Separating Plate | TS-KK3 |
Partition Plate | |
Zack Strip????????????????????? White | ZB6 |
Screwdriver | SZS0.6×3.5 |
Rail Material | aluminum |
Dimensions???????????????????????????? mm | 6.2/63.5/1.5 |
Height (U35: 7.5/U35: 15G 32)????????????? mm | 47/54.5/52.5 |
Screw / Torque?????????????????????????? Nm | M3 / 0.6-0.8 |
Stripping Length????????????????????????? mm | 8 |
IEC Technical Data | |
Max. Load Current / Cross Section???????? A / mm2 | 32/4 |
Rated Surge Voltage / Contamination Class??? KV / - | 6 / 3 |
Surge Voltage Category | Ⅲ |
?
