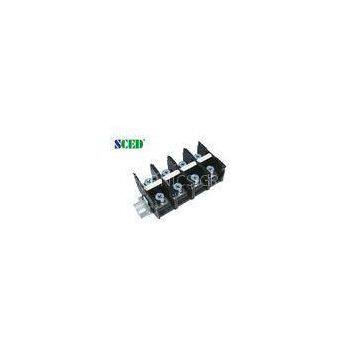

600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P - 20P
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
200A 600V High Current Rail Terminal Connectors , 24P Power Terminal Block 36.00mm Pitch
-
600V 240A PCB Mount Terminal Block Connector , Power Terminal Blocks 36.00mm Pitch
-
47.00mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters
-
High Current Electrical Rail Mounted Terminal Blocks 2P - 12P 60.00mm 600V 500A
-
5.2mm Width Rail Mounted Terminal Blocks , 600V 20A AWG 28 - 12 Din Rail Terminal Block
-
AWG 24 - 10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TR175-01-FaM0 |
Product Description
Certification:UL, CE
Parameter and Drawing Specifications:
?
UL Technical Data | B | C | D |
Rated Voltage / Current????????????? V/A | 600 / 175 | 600 / 175 | |
Wire Range?????????????????????? AWG | 3/0-20 | 3/0-20 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current????????????? V/A | 800 /175 | 1000 / 175 | 1000 / 175 |
Rated Surge Voltage???????????????? KV | 8 | 8 | 8 |
Rated Connecting Capacity?????????? mm2 | 80 |
||
Material | |||
Insulation Material / Inflammability Class | PC / UL94, V-0 |
||
Conduction Board/ Plating | Brass /Nickel Plated |
||
Screw / Plating | Steel / Zinc Plated |
||
Other Data | |||
Stripping Length????????????????? mm | 14-18 |
||
Screw Torque??????????????????? mm | M8/31-40 |
?
?
Detailed product Description:
?
600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P-20P, any pole available
■Right angle wire inlet;? □Vertical wire inlet;? □45 degree wire inlet
■Single Level;? □Double levels;? □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
?
?
How to order:
?
?
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
?
?
Competitive Advantage:
?
