Home > Products > Fiber Optic Connector > Fiber Optic Zirconia Ceramic Ferrule For Making Fiber Optic Patch Cord
Fiber Optic Zirconia Ceramic Ferrule For Making Fiber Optic Patch Cord
Negotiable
1 (Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
FC / SC 4cores Fiber Optic Patch Cord , Multimode Water Proof Patch Cord
-
Waterproof Central Loose Tube Indoor / Outdoor fiber optical cable
-
24 Core / Non metal Outdoor Fiber Optic Cable Multi mode FRP Strength Member
-
144 cores Multi mode PE Outdoor Direct Buried Fiber Optic Cable GYTS
-
Aluminum Tape Layer Telecommunication Outdoor Fiber Optic Cable In Networking
-
FTTX Drop Outdoor Fiber Optic Cable In Data Processing Networking
Product Details
| Brand Name | ODM Or SINDA OEM | Place of Origin | China | |
| Model Number | Fiber Optic Ferrule |
Product Description
Certification:ISO, ROHS

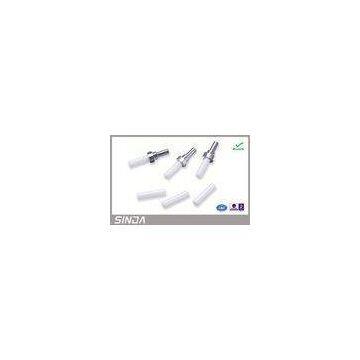

Fiber Optic Zirconia Ceramic Ferrule For Making Fiber Optic Patch Cord
Quick Details :
Optimized for SC, FC, ST connector
High quality and performance
High precision for concentricity, I.D., O.D.
Low insertion loss
High reliability by using zirconia
Compliant with RoHS and Telcodia-GR-326-CORE
SC ferrule SM & MM available
Description:
Low?insertion?loss?
Strong?interchanging?capability?
UL94V-O?and?ROHS?standard?
High?resistance?of?corrosive
Applications: ?
Optical?fiber?communications?system
Optical?fiber?access?networks
Optical?fiber?CATV
Optical?fiber?test?equipements
Optical?fiber?data?communication
LAN
Specification :
| Parameter | Unit | FC,LC,SC | ST,MU | MTRJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | °C | -40~+75 | -40~+75 | -40~+75 | |||||||
| Storage temperature | °C | -45~+85 | -45~+85 | -45~+85 | |||||||
| Cable diameter | mm | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 |
Competitive advantages:
Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.?
? All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.
? We wish to create better future of optical communication industry jointly with both new and existing customers.
