loop handle non woven bag making machine sealing pp for t shirt bag
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
PP automatic non woven bag making machines / carry bag machine
-
ultrasonic sealing nonwoven carry bag machine making shoes bag
-
Multi-function non woven bag making machine / equipment , 40-120pcs/min
-
PLC control automatic non woven bag making machine for non woven bag handle bag
-
PLC automatic non woven bag making machine for non woven bag handle bag
-
high speed automatic non woven bag making machine / equipment for Drawstring Bag
Product Details
| Brand Name | OUNUO | Place of Origin | China | |
| Model Number | ONL-XA700 |
Product Description
Certification:CE
? loop handle non woven bag making machine sealing pp for t shirt

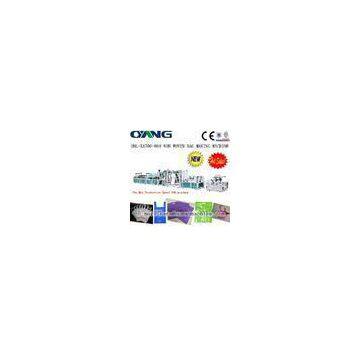

? <img src=\"/photo/bagmaking-machine/editor/20140317214256_13223.jpg\" alt=\"ONL-XA700 fully automatic non woven bag making machine\" ori-width=\"800\" ori-height=\"800\">
Machinery Advantage:
1. Ultrasonic device to seal bags in good quality
2. Computer control, automatic feeding, automatic counting, automatic stopping.
3. Easy to operate and strong sealing effective
4. Photocell to track the color
5. Equipped with servo motor
6. Equipped auto pneumatic punching device
7.Equipped with tension control device.
8. Machine has got CE Certification, SGS Certification, company has obation ISO9001:2008 certification
Machinery Device:
1.One set computer with touch-screen system.
2. One the programmable controller.
3. Six sets of ultrasonic system.
4. Traction inverter to control the main motor
5. Micro-motor four.
6. Two sets of step motors.
7. High quality ultrsonic sealing device from Germany to make sure the bag qulaity
Machinery Features:
ONL-XA700?CE standard full automatic non woven bag making machine for box type bag?is the newest and lastest product we reseached , it can sealing the bag handle automatic, no need sepearate handle sealing machine, the sped is fast, speed can reach 60-100pcs/min, it\'s an idea equipment to make the non woven sealing bag.
Bags can make
1-non woven handle bag
2-non woven D-cut bag
3-non woven box bag with handle
4-non woven T-shirt bag
5-non woven shoes bag
6-non woven zipper bag
7-non woven laminating bag
Main parameters:
|
700Model |
||||
|
Non woven bag |
Flat bag |
Handle bag |
T-shirt bag |
Box bag |
|
Non wove bag length(mm) |
100-800 |
100-800 |
100-800 |
100-800 |
|
Non woven bag width(mm) |
100-580 |
100-580 |
100-580 |
100-580 |
|
Bag making speed(pcs/min) |
20-100 |
20-80 |
20-80 |
20-60 |
|
Non woven fabric thickness(G/M2) |
30-100 |
30-100 |
30-100 |
30-100 |
|
Rewinding material width |
1300mm |
|||
|
Machine weight |
2500kg |
|||
|
Power Supply |
220V, 50HZ, Single Phase |
|||
|
Total Power |
21kw |
|||
|
Overall Dimension |
11000*1950*1800 |
|||
|
Air compressor |
10.2kw |
|||
|
Handle sealing part |
6 Set Top quality ultrasonic | |||
|
Loop handle length |
400-600mm |
|||
|
Loop handle Width |
250-300mm |
|||
|
Diameter |
800mm |
|||
|
Handle loop fabric Weight |
60-120gsm |
The machine details:
