Home > Products > Carton Machines > 300mm Depth Energy-saving Steel High-speed Printing Slotting Die-cutter Carton Machines

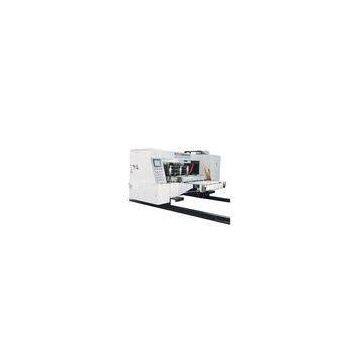

300mm Depth Energy-saving Steel High-speed Printing Slotting Die-cutter Carton Machines
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
60pcs/min Auto Chrome Carton Flexo Printing Slotting Machinery With Chain Feeding Model
-
Pneumatic Locking Automatic Lubrication Carton Printing Slotting Machinery With Gear Pumps
-
3kw CE Joggling Chrome Chain Feeding Model Automatic XT-L Series Carton Slotting Machinery
-
7.5kw CE High-speed Alloy Aluminum Double Roller Die Cutting And Molding Carton Machinery
-
High-precision Alloy Steel High-speed Auto Printing Slotting Die-Cutter Carton Machinery
-
DXJ-900 Series Stable Running Digital Control Auto Carton Stapler With Long Service Life
Product Details
| Brand Name | Xintian | Place of Origin | China | |
Product Description
Certification:CE, ISO
300mm Depth Energy-saving Steel High-speed Printing Slotting Die-cutter Carton Machines
Functions and features:
International famous brand electric parts and computer software are used in the whole machine with stable and reliable quality; human-computer interface, computer order storage, convenient operation and faster order update.(It can prestore 999 orders in the computer.)
Complete machine baffle and important parts use tempering to decrease the metal internal force; and all parts are made by high-precision processing center and grinded by numerical -control grinder.
All transmission axles and rollers are made by high-quality steel, and processed through tempering and dynamic balance; plated with rigid chrome and grinded surface.
All transmission gears are made by 20CrMnTi alloy steel, which is grinded after heat-treatment, rigidity HRC58-62, and which is made by rubbing, 6 grade precision to maintain high topping precision after long using.
All transmission parts (connected with the axles and gears) adopt the hand-free connecting ring to eliminate the interval, suitable for long-term high-speed running.
All transmission bearings adopt strengthened model bearing, equipped with dustproof windtight parts and the oiling, handy to maintenance, lasting for longer using.
The whole machine undergoes automatic spray lubrication, with intuitionistically showing facilities and double oil pipe balance system.
The whole machine runs with the adjustment presetting function, feeding, printing, slotting, die cutting all featuring auto- zeroing and memory automatic reposition.
The whole machine working interval adjustment adopts fast spanner-free adjustment and the electromagnetic brake system with the worm wheel and worm setting operates fast and conveniently.
The mainframe chooses control by frequency conversion, with more stable and energy-saving for start-up and running.
Option for the vacuum adsorption, kick feeding or leading edge feeding.
Optional equipments: ceramic anilox roller, leading edge feeding system, remote computer diagnosis system, stacker.
| WYAZS | UNIT | WYAZS | ? | |||||
| 1200×2000/2400 | 1400×2000/2400 | ? | ||||||
| 1 | Inboard?width | mm | 2400 | 2800 | 2400 | 2800 | 2800 | 3200 |
| 2 | verage?size | mm |
1270× 2200 |
1270× 2600 |
1470× 2200 |
1470× 2600 |
1570× 2600 |
1570× 3000 |
| 3 | verage?size | mm |
320× 640 |
320× 640 |
380× 720 |
380× 720 |
450× 800 |
450× 800 |
| 4 | Max.printing?area | mm |
1200× 2000 |
1200× 2400 |
1400× 2000 |
1400× 2400 |
1500× 2400 |
1500× 2800 |
| 5 | Skip?feeding | mm |
1450× 2000 |
1450× 2400 |
1650× 2000 |
1650× 2400 |
1750× 2400 |
1750× 2800 |
| 6 |
