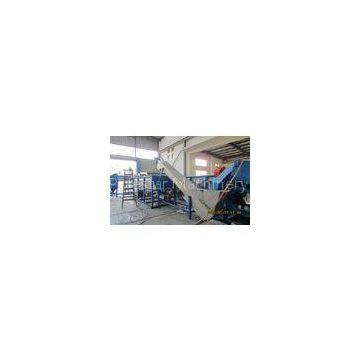

Floating Automatic PET Flakes Washing Line Plastic Washing Machine For PET

Floating Automatic PET Flakes Washing Line Plastic Washing Machine For PET

Quick Detail:

PET washing line floating washing machine

1.Washer Material: stainless steel

2.Washer Group:single or double screw

3.Capacity:500-2000kg/h

Applications:

PET washing line floating washing machine was widely used in waste plastic washer. It is mainly used for wash and separate plastic bottle, sheet and film. It will separate based on the different density of material.

This machine’s water inlet pipe inter diameter is ?25, water pressure is 1.5KG, the water consumption is about 1t/h.

Specifications:

Description:

All the material of PET washing line floating washing machine adopts stainless steel. It can’t be rust and contaminated the material, it adopt high automatic control system, so no adjustment is needed. It can be making into different length according to different requirement. This device is separate by density rate. It can adjust based on different material, reach to the aim of washing and separate.

The retarder of the floating washer makes all the rollers run in the same direction to push the whole material,the material is dipping and dispersing during the proces.for the pp,pe firm,the PE is impruity including dirty,sand with it will get down to the bottom of the washer.according to PET will get down to the bottom ,then the others impurity is floating .

So that the material will be washed and the impurity will be separated,finally the impurity will be vented by the drain screw,and the clean material will be transported into next unit.according to the different material,the machine makes the material float and down,then clean them clearly.

Competitive Advantage:

Final products has good quality. When process PET bottle, final products humidity below 1%, flake size 8-10mm, impurities150ppm,PVC content 150ppm . The whole line capacity between 300kg/h-3000kg/hour.

Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time.

World famous brand components applied on the production line- Siemens contactor, Omron temperature,etc.

The whole production line with CE certification, ISO9001 certification;

Flakes after PET washing line floating washing machine:

Package and shipment of PET washing line floating washing machine:

Our customer:
