Home > Products > Allen Bradley PLC > Compact solid state 24V DC source Allen Bradley PLC , DC Output module 1769 - OB8

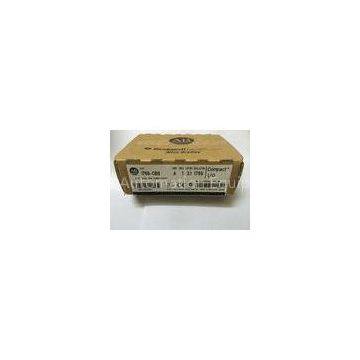

Compact solid state 24V DC source Allen Bradley PLC , DC Output module 1769 - OB8
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
8 Outputs 24V DC Sourcing , Allen Bradley PLC 1769 - OW8 DC Output Module
-
High Power Beam for Stability Keyence Fiber Optic Sensor FS - V31 12 to 24 V
-
Cable Type Main Unit Keyence optical fiber sensors FS - N11N Fiber Amplifier
-
Keyence FS - V22RP Fiber Amplifier Expansion Unit Fiber Optic Sensor
-
Water Resistant Keyence Reflective Fiber Optic Sensor FU - 4FZ temperature sensor
-
1756 - OW16I Allen Bradley PLC Programming , 16 N.O. Individually Isolated Outputs
Product Details
| Brand Name | Allen-Bradley | Place of Origin | China | |
| Model Number | 1769-OB8 |
Product Description
Compact solid state 24V DC source Allen Bradley PLC , DC Output module 1769 - OB8
Quick Detail :
| Product Name | Outputs | Voltage Category | Operating Voltage Range | Backplane Current | Model |
| Digital DC Output Module | 8 outputs | 24V DC , sourcing | 20.4...26.4V DC | 145 mA at 5.1V | 1769-OB8 |
Description :
An output module controls the output signal in the following manner:
? Logic circuits determine the output status.
? An output LED indicates the status of the output signal.
? Optical isolation separates module logic and bus circuits from field power.
? The output driver turns the corresponding output on or off.
Specifications :
| Model | 1769-OB8 |
| Product type | Compact solid state 24V DC source , high-current output module |
| Outputs | 8 (4 points/group) |
| Voltage category | 24V DC source |
| Operating voltage range | 20.4…26.4V DC |
| Output delay, on | 0.1 ms |
| Output delay, off |
1.0 ms @ 60 °C max load 2 A, min V in 20.4V 1.5 ms @ 60 °C max load 1mA, min V in 20.4V |
| Current draw @ 5.1V | 145 mA |
| Heat dissipation, max | 2.20 W |
| Off-state leakage current, max | 1.0 mA @ 26.4V DC |
| On-state current, min | 1.0 mA |
| On-state voltage drop, max | 1.0V DC @ 2 A |
| Current per point, max | 2.0 A @ 60 °C (140 °F) |
| Current per module, max | 8.0 A @ 60 °C (140 °F) |
| Surge current | 4 A for 10 ms, repeatable every 2 s |
| Weight , approx | 280 g (0.61 lb) |
| Dimensions (H x W x D) , approx |
118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) |
| Slot width | 1 |
| Module location | DIN rail or panel mount |
| Power supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Power supply distance rating | 8 modules |
Allen-Bradley 1769 Compact Digital DC I/O Modules are available as below :
1769-IG16
1769-IQ16
1769-IQ16F
1769-IQ32
1769-IQ32T
1769-IQ6XOW4
1769-OB8
1769-OB16
1769-OB16P
1769-OB32
1769-OB32T
1769-OG16
1769-OV16
1769-OV32T
