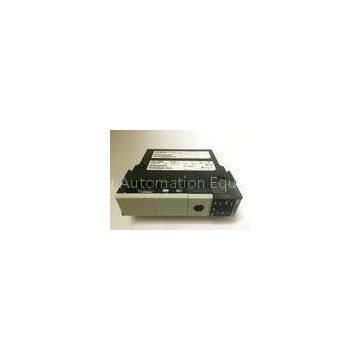

16 Individually Isolated Outputs Allen Bradley Common PLC software configurable 1756 - OA16I
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Genuine 1756 - IB16 Allen Bradley PLC 16 Inputs 12 / 24V DC Sink , DC Input Module
-
DC Output Module Allen Bradley programmable logic controller 1756 - OB32
-
Compact solid state 24V DC source Allen Bradley PLC , DC Output module 1769 - OB8
-
8 Outputs 24V DC Sourcing , Allen Bradley PLC 1769 - OW8 DC Output Module
-
High Power Beam for Stability Keyence Fiber Optic Sensor FS - V31 12 to 24 V
-
Cable Type Main Unit Keyence optical fiber sensors FS - N11N Fiber Amplifier
Product Details
| Brand Name | Allen-Bradley | Place of Origin | China | |
| Model Number | 1756-OA16I |
Product Description
16 Individually Isolated Outputs Allen Bradley Common PLC software configurable 1756 - OA16I
Quick Detail :
| Product Name | Inputs | Voltage Category | Operating Voltage Range | Removable Terminal Block | Model |
| Digital AC Output Module | 16 individually isolated outputs | 120 / 240V AC | 74…265V AC |
1756-TBCH 1756-TBS6H |
1756-OA16I |
Feature?:
? Variety of voltage interface capabilities
? Isolated and nonisolated module types
? Point-level output fault states
? Direct-connect or rack-optimized communication
? Field-side diagnostics on select modules
Specifications?:
| Model | 1756-OA16I |
| Product type | ControlLogix 120/240V AC isolated output module |
| Outputs | 16 individually isolated |
| Pilot duty | Yes |
| Voltage category | 120/240V AC 50/60 Hz |
| Operating voltage range |
74…265V AC 47…63 Hz |
| Input voltage, nom | 24V DC |
| Output delay time | ? |
| Off to On |
9.3 ms @ 60 Hz 11 ms @ 50 Hz |
| On to Off |
9.3 ms @ 60 Hz 11 ms @ 50 Hz |
| Current draw @ 5.1V | 300 mA |
| Current draw @ 24V | 2.5 mA |
| Total backplane power | 1.59 W |
| Power dissipation , max | 5.5 W @ 60 °C (140 °F) |
| Thermal dissipation | 18.76 BTU / hr |
| Off-state leakage current, max | 3 mA per point |
| On-state voltage drop, max |
1.5V peak @ 2 A 6V peak @ load current < 50 mA |
| Current per point, max |
2 A @ 30 ° (86 °F) linear derating 1 A @ 60 °C (140 °F) linear derating |
| Current per module, max |
5 A @ 30 °C (86 °F) linear derating 4 A @ 60 °C (140 °F) linear derating |
| Surge current per point | 20 A for 43 ms per point, repeatable every 2 s @ 60 °C (140 °F) |
| Load current, min | 10 mA per point |
| Commutating voltage |
4V/?s for loads > 50 mA 0.2V/?s for loads < 50 mA |
| Scheduled outputs | Synchronization within 16.7 s max, reference to the Coordinated System Time |
| Isolation voltage |
250V ( continuous ) , basic insulation type, output s – to - backplane, and output-to-output Routine tested @ 1350V AC for 2 s |
| Module keying | Electronic, software configurable |
| Removable terminal block |
1756-TBCH 1756-TBS6H |
| RTB keying | User-defined mechanical |
| Enclosure type | None (open-style) |
Allen-Bradley ControlLogix Digital AC Output Modules are available as below :
1756-OA8
1756-OA8D
1756-OA8E
1756-OA16
1756-OA16K
1756-OA16I
1756-OA16IK
1756-ON8
