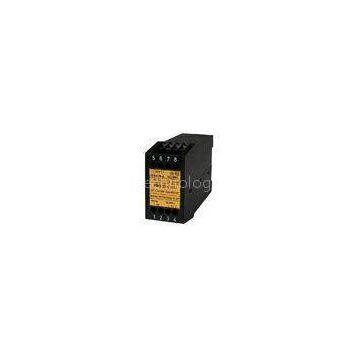

2-Wire Electrical 50HZ, 60HZ AC Current Transducer For DIN 35mm Rail PRO I31/32/33

2-Wire Electrical 50HZ, 60HZ AC Current Transducer For DIN 35mm Rail PRO I31/32/33

1. Product Description

Pro Series Transducers for Electrical Quantities, fundamental devices for process automation. All our instruments fulfill all important requirements and regulations concerning electromagnetic compatibility and safe isolation (IEC688-1992 standard and GB/T 13850-1998 standard). The devices have been developed, manufactured and tested in accordance with Quality Assurance System ISO 9001.

2. Technical Specification

Accuracy:?Class0.2,?0.5????

Auxiliary?Power?Supply:?85V~265VDC/AC?24V~80VDC/AC??

Stability:?Annual?Change?Rate?≤±0.2%

Input?Overload?Capacity:?????????????????????

Continuous?Overload?Capacity?≤1.5?X?

Transient?Overload?Capacity??Voltage?Limit≤3X??Current?Limit≤30X??

Output:

Constant?Voltage?Output,?Load?Resistor????Rext≥250Ω

Constant?Current?Output,?Load?Resistor????Rext≤500Ω

Alternating?Wave:?≤18mV(Peak-Peak)??

Response?Time:?≤300ms

Striking?Voltage:?≤2.5kV

Operating?Temperature:?-10℃~+55℃

Storage?Temperature:?-40℃~+85℃

Relative?Humidity?of?Annual?Mean:?≤90%RH

Installation:?DIN?35mm?Rail

Size:?105mm×69mm×112mm?

Guaranty?Period:?2?years

3.?Technical?Data

Input:?0-1A,?0-2A,?0-5A

Output:?4-20mA,?4-20mA?(2-wire),?0-20mA,?0-10mA,?0-1mA,?0-5V,?0-10V,?0-1V

Frequency:?50HZ,?60HZ

4.?Wiring?

PROI31?wiring?diagram

“OUT”??Output?In?Correspondence

“IN”?????Input?Current??Variables?

“UH”????Auxiliary?Power?Supply??

Note?:?2?wire?transducer?just?can?select?24VDC?auxiliary?power?supply?and?4-20mA?output?signal.

PRO?I32?2in1?wiring?diagram

PRO?I?33?3in1?wiring?diagram
