Home > Products > Wire Buzzer > 17MM 5V Piezo Wire Buzzer 78dB External Drive Type
17MM 5V Piezo Wire Buzzer 78dB External Drive Type
- T/T L/C D/P D/A
- 7 days
You May Like
-
Alarm Wire Buzzer Piezoelectric Transducer Passive
-
White ABS 9V Wire Buzzer Siren Length Can Be Customized
-
Black ABS Piezo Wire Buzzer 85dB Sound , Electronic Buzzers
-
44*14MM 10V Piezo Wire Buzzer Alarm External Drive Type
-
Black 6V DC Piezo Wire Active Buzzer Sound 88 dB 23x12MM
-
Active Buzzer , 9V Buzzers Wire Electronic Piezo Transducer
Product Details
| Brand Name | FHD | Place of Origin | China | |
| Model Number | BP1740W-4001 |
Product Description
Certification:ISO9001 TS16949

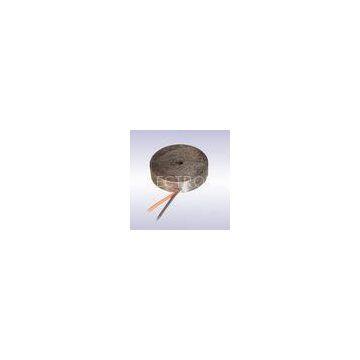

17MM 5V Piezo Wire Buzzer 78dB External Drive Type
Quick Detail:
Size: D16.5mm*H4.0mm SPL: Min.78dB at 2.6KHz/5Vp-p 1/2 Duty Square Wave/10cm Operating Voltage: 1-30Vp-pDescription:
buzzer Piezo Buzzer Piezo Buzzer with Wire 5V Buzzer 17mm Piezo BuzzerSpecification:
1.?Technical?Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.
|
1 |
Resonant Frequency |
2600±500Hz |
|
2 |
Operating Voltage |
1～30 Vp-p |
|
3 |
Rated Current |
Max.1mA , At 2.6KHz 50% duty Square Wave 5Vp-p |
|
4 |
Sound Output at 10cm |
Min. 78dB, At 2.6KHz 50% duty Square Wave 5Vp-p |
|
5 |
Capacitance |
15000±30% pF At 120Hz |
|
6 |
Operating Temperature |
-20℃～+60℃ |
|
7 |
Store Temperature |
-30℃～+70℃ |
|
8 |
Net Weight |
Approx 1g |
|
9 |
RoHS |
Yes |
3.Electrical?And?Acoustical?Measuring?Condition
Recommended Setting
4.Frequency Response
???? 5Vp-p 50% duty Square wave,10cm
Application:
CHANGZHOU FHD ELECTRONICS CO., LTD is a professional manufacturer in the field of ceramic components ,our products is widely used in household electrical appliances; mobile phones; computers; medical equipment; alarm system; pos machine ；access control system; toy; automobile; instrument and meter; electrical equipment; we can produce all kinds of piezo buzzers as long as you have the following details; welcome to consultation discussion.
