Flat Shake Aluminum Stone Chip Coated Steel Roof Tiles For Mansion / building outdoor

Stone coated steel roofing tile-wood/shake tile type

1Raw material

Aluminum-Zinc?coating?steel

2 Size of Stone coated steel roofing tile

(1) overall size

1340mm*420mm

(2) valid size

1290mm*370mm

3 Acreage of Stone coated steel roofing tile

(1)tiles per square meter

2.1 pieces / ㎡

4 Weight of Stone coated steel roofing tile

(1) weight per tile

2.8KG

(2) weight per square meter

6KG / ㎡

5 Packing and loading of Stone coated steel roofing tile

(1) package

10pcs / bag

(2) loading

8640 pcs/20ft container with accessories

6 Color of Stone coated steel roofing tile

(1) normal color

Ink Gray, Red, Asian Red, Asian Green, Green, Ocean Blue, Peacock Blue , carbon black, Brick red, Autumn Brown, Sepia, Desert Golden

(2) special color

Can be produced as request

7 Advantage of Stone coated steel roofing tile

(1) Aesthetic:

Four models; 12 optional colors.

(2) durable

Can endure high temperature and low temperature, can resist bad weathers. Zinc-aluminum coating and stone chip coating can anti-corrupt effectively;

(3) sound and heat insulation:

the stone chip can reduce the sound effectively, and can hold back the heat;

(4)easy installations:

Easy to be folded, easy to cut.

(5) light in weight:

The unit weight is about 2.3-2.8kg/piece, just 1/6 as concrete/ clay tile. Easy to be transported and installed.

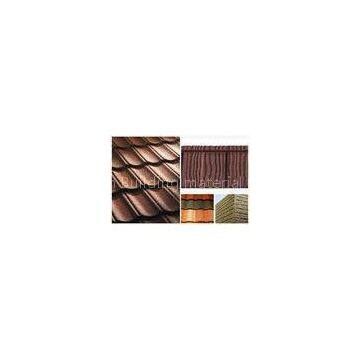

8 Other model of Stone coated steel roofing tile

(1)

Classic / Arc tile

(2)

Roman / wave tile

(3)

wood / shake tile

9 Accessories of Stone coated steel roofing tile

(1)

Angle ridge cap

(2)

Box barge cover

(3)

Valley tray

(4)

nail

(5)

Fitting kit

1. Light roofing material.
