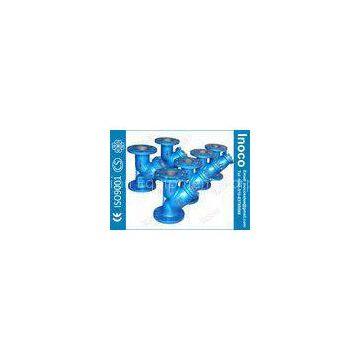

Pre Filter Y Strainer Liquid Water Purification For 50um / 150um With Flange Connection

Pre Filter Y Strainer?Liquid Water Purification For 50um / 150um With Flange Connection

Quick Detail:

1,High strength, fine sealing

2,Carbon steel ,SS304 or 314

3,connection type:flange ,welding etc

4,Monel screens

5,Perforated stainless steel screens – 1/32” to ?”

6,20, 40, 60, 80, 100, 150, 200, 325 and 400 mesh stainless steel screens

Description:

Specifications:

Y welding flange strainer

Applications:

This product is designed for remove foreign matter from pipe lines and provides protection for pumps, meters, valves, and other similar mechanical equipment, which is called as Strainer. \"Y\" Type Strainers are named after their shape and normally used for course filtration. But with large filtration area can be used with fine mesh also. The Strainer improves the clearance in the medium, and prolongs the life of valves; protect expensive pumps, meters and other equipments. It is suitable for water, Air, Gas, petroleum, steam and other fluids.

Competitive Advantage:

A Y-strainer has the advantage of being able to be installed in either a horizontal or vertical position.? However, in both cases, the screening element or \"leg\" must be on the \"downside\" of the strainer body so the entrapped solids can be properly collected and held for disposal.? Eaton heavy-duty Model 85 Y Strainers are furnished with high quality stainless steel screens that are carefully fabricated to fit the strainer body perfectly.? This, coupled with the precision machined screen seat on the body of the strainer, protects against any bypass.

Y strainers are a cost-effective solution for the mechanical removal of unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. They are used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.
