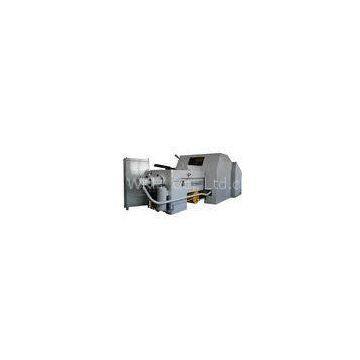

Aluminum Tube / Can Impact Extrusion Press Equipments For Automobile Filters

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WKH		Place of Origin	China
Model Number	N/A

Product Description

Delivery Time:30~180 days
Certification:ISO9001:2000

Quick Detail:

Extrusion press used for collapsible tube and can producing. Materials of Aluminum, iron and Zinc are all suitable for producing with impact extrusion press, and products include cans, bottles, capacitor shell, battery case, etc. Extrusion press can be categorized into Horizontal extrusion & Vertical extrusion; mechanic extrusion & hydraulic extrusion. We have rich experiences in the can production, we know well about each type of the extrusion press and we are able to provide whole solution to you.

Applications:

Used for production of collapsible tube, cans, bottles with the materials of aluminum, Iron and zinc. For example, aluminum cans for capacitor shell, aluminum shells for automobile filters, aluminum cans for extinguisher, zinc tube for battery case. Extrusion press is widely applied in the industries of electric, automobile, cosmetics, meter, aviation, military etc.

Specification of Horizontal extrusion press:

Item	Unit	60A	60B	180	200B	200C	200K
Nominal pressure	KN	600	600	1800	2000	2000	2000
Nominal pressure stroke	mm	5	5	5	5	5	5
Stroke of slide	mm	220	145	250	300	190	155
Stroke per minute	Min-1	60	100	65	65	85	100
Max shut height	mm	355	355	460	480	480	480
Adjustment of shut height	mm	5	5	12	12	12	12
Max diameter of can	mm	Φ25	Φ20	Φ48	Φ55	Φ50	Φ45
Max length of can	mm	130	90	170	200	110	100
Power of main motor	KW	5.5	5.5	11	11	11	11

Item	Unit	265	315A	315B
N
