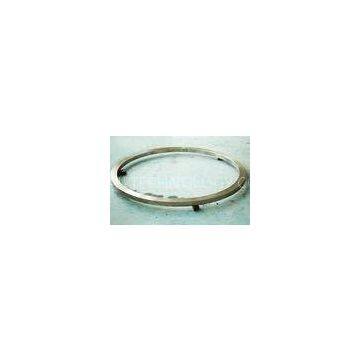

DIN High Tolerance Spur Gear Ring For Pivoting Support , 300mm Die Forging Parts

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BAIYE		Place of Origin	China
Model Number	φ500mm-φ3500mm

Delivery Time:According to Drawing
Certification:ISO9001:2008

DIN High Tolerance Spur Gear Ring For Pivoting Support , 300mm Die Forging Parts

Descrition:

Material	Alloy?Steel,?Casting?Steel,?Gray?cast?iron,?Ductile?Iron,?Weldment
Modulus	3mm-50mm
Accuracy	DIN?Class?4,?ISO/GB?Class?4,?AGMA?Class?13,?JIS?Class?0
Standard	DIN,?ISO/GB,?AGMA,?JIS
No.?of?teeth	more?than?12
Heat?treatment	Quenching?and?tempering,?gear?teeth?induction?quenching,?nitriding,? carburization
Application	Wind?turbine,?locomotive,?feeding?machinery,?metallurgy?machinery,? mining?machinery
Out?diameter	300mm?min.,?2500mm?max.
Gear?shaft?length	2500mm?max.
Gear?width	600mm?max.
Weight	15?tons?max.

Applications:

The?product?widely?applies?in?the?petroleum,?chemical,?the?electric?power,?the?metallurgy,?the?

shipbuilding,?the?bearing,?the?pivoting?support?and?the?overhaul?need.

Specifications:

Material?standard:	GB,?ASTM,?AISI,?ASME,?DIN,?BS,?EN,JIS
Material:	Carbon?Steel,?Stainless?Steel,?Alloy?Steel?
Forging?machine:	2000T??Forging?Hydraulic?Press,?Ring?Roll
Process:	EAF+LF+VD+VC+Forged+?Machinery
Machinery:	CNC-machine
Forging?weight	100kg-12ton

Competitive?Advantage:

We?have?three?factories?directly?(steel?plant,?forging?plant,?machine?processing?factory),

?control?the?entire?production?process,?greatly?reduce?the?production?cost?and?circulation?

costs,?can?provide?cheap?and?fine?products?to?our?customers.?
