Automatic AAC Block Making Plant Sand / Cement Brick Making Machine 250000m3

Quick Detail:

Following the domestic development requirement regarding energy saving and environmental protection, we have upgraded, innovated and developed series of AAC production line equipment based on initiation from and absorption of the advanced German technology and design concept. So far we have supplied all kinds of AAC production line equipment in different facility configurations and production capacities to domestic and abroad customers. In the meanwhile, we have provided customers with various kinds of service such as upgrade of equipment, expansion of production capacity, analysis of raw material, systematic process design and layout, complete project management, and so on.?

Raw Material:Sand,Lime,Cement,Gypsum, Aluminum powder,Water

Power:380~450kw,220V,380V

We can supply different equipment configuration for following AAC production lines:
- AAC Block and Panel Production Line in Annual Output (Production Capacity) of 50,000m3
- AAC Block and Panel Production Line in Annual Output (Production Capacity) of 100,000m3
- AAC Block and Panel Production Line in Annual Output (Production Capacity) of 150,000m3
- AAC Block and Panel Production Line in Annual Output (Production Capacity) of 200,000m3
- AAC Block and Panel Production Line in Annual Output (Production Capacity) of 250,000m3
- AAC Block and Panel Production Line in Annual Output (Production Capacity) of 300,000m3

Description:

Project Proposal of AAC Production Line AAC Plant
Annual out put 50,000-300,000m3
I? Production Technique
1. Product Principle
1) Technology Orientation
Production and application of aerated concrete has a history more than 40 years in China. Viewing from technology point, high quality products can use 3mm special sand slurry technology to meet the construction requests and 50% energy saving goals. (When mortar joint is less than 3mm, take thermal conductivity coefficient of wall as 1; when mortar joint is more than 3mm, take thermal conductivity coefficient of wall as 1.5). Based on the history of the aerated concrete development, only high quality products can bring a prosperous market. Thus, the technology orientation of this scheme is high-class products according to China Standard GB11968-2006.
2) Production Capacity
The product is aerated concrete block and the output is 150,000m3 per year. The first phase can be equipped according to 100,000m3 per year. There is a reservation of plate in consideration of user\'s need.
3) Product Specification
Products conform to requirement of 04~07 grade blocks stated in GB11968-2006.
General Specifications of Aerated Concrete Blocks

Working Principle:

Technical Parameter:

The formulation of aerated concrete of 600kg/m3 absolute dry volume weight is:
Sand : Quick Lime : Cement : Gypsum = 68 : 20 : 10 : 2
Aluminum accounts for 0.074% of the total volume of dry materials;
Ratio of water to material: 0.6~0.65.

Application Range:

Autoclaved Aerated Concrete AAC Production Line AAC Plant used for products of AAC.

Operation Instruction:

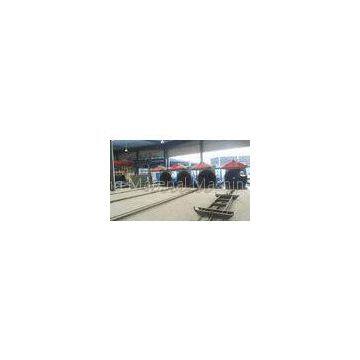

One-shift production may be put into practice when piecework system is carried out in the enterprise, but working hours must be prolonged and workers of the shift must be increased, and also labor protection should be done well. If four autoclaves are arranged in Phase One, fixed persons are organized in one shift.
