Home > Products > 10G X2 Module > 10GBASE-SR CISCO 10G X2 Transceiver Module For MMF SC X2-10GB-SR

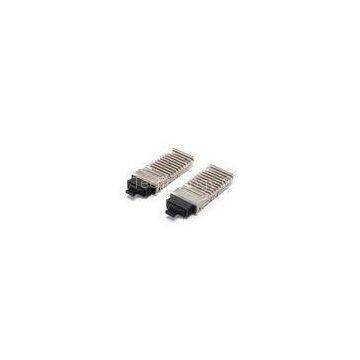

10GBASE-SR CISCO 10G X2 Transceiver Module For MMF SC X2-10GB-SR
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
3 Meter Passive QSFP + Direct Attach Copper Cable For Cisco QSFP-H40G-CU3M
-
3m 40 Gigabit Ethernet QSFP+ Passive Copper Cable Assembly For Extreme 10313
-
10G CWDM Fiber Optic Transceiver SFP HUAWEI Compatible 40km , Duplex LC Connector
-
10 Gigabit Ethernet Passive 3m QSFP+ Copper Cable Break out For Juniper QFX-QSFP-DACBO-3M
-
Duplex LC 1.25G BIDI SFP Optical Transceiver With DDMI For Router / Server Interface
-
155M BIDI SFP Transceiver For Enterasys Network Equipment Compatible With Entersays
Product Details
| Brand Name | Anzi | Place of Origin | China | |
| Model Number | X2-10GB-SR-A |
Product Description
Certification:ISO
10GBASE-SR CISCO 10G X2 Transceiver Module For MMF SC X2-10GB-SR
?
Specification:
|
P/N |
X2-10GB-SR-A |
|
Datarate |
10.3G |
|
Wavelength |
850nm |
|
Distance |
300M |
|
Transmitter |
VESCEL |
|
Receiver |
PIN |
|
Media |
SMF |
|
DDM/DOM |
YES |
|
Connector |
SC |
|
Application |
Datacom 10G Ethernet/10x FC |
|
Operating Temperature |
0℃~ +70℃ |
|
Voltage Supply |
3.3V |
|
Certification |
CE/FCC/RoHS/TUV/UL |
|
Brand |
Neuter, OEM |
Description:
10GBASE-SR X2 transceiver module for MMF, 850-nm wavelength, SC duplex connector
10GBASE X2 modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.Support 10GBASE Ethernet
Hot-swappable input/output device plugs into an Ethernet X2 port of a switch or router to link the port with the network .
Provides flexibility of interface choice.Supports \"pay-as-you-populate\" model
Has optical interoperability with respective 10GBASE Xenpak, 10GBASE XFP and 10GBASE SFP+ modules on the same link
Features
Compatible with X2 MSA Rev2.0b
Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
Transmission Distance up to 300m (MMF)
Vertical Cavity Surface Emitting Laser at 850nm
SC Duplex Optical Connector
Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
Management and control via MDIO 2-wire interface
Power Supply :+3.3V, APS(+1.2V)
Diagnostic Optics Monitoring
Temperature Range: 0~ 70 °C
ROHS Compatible?
Applications
10GE Ethernet switches and routers 10GE Core-routers 10GE Storage Other 10Gbps Ethernet Transmission SystemCisco 10G X2 transceiver
| X2-10GB-SR= | X2-10GB-SR-A | 10GBASE-SR X2 transceiver module for MMF, 300M |
| X2-10GB-LR= | X2-10GB-LR-A | 10GBASE-LR X2 transceiver module for SMF,10km |
| X2-10GB-LRM= | X2-10GB-LRM-A | 10GBASE-LRM X2 transceiver module for MMF 220M |
| X2-10GB-ER= | X2-10GB-ER-A | 10GBASE-ER X2 transceiver module for SMF, 40km |
| X2-10GB-ZR= | X2-10GB-ZR-A | 10GBASE-ZR X2 transceiver module for SMF, 80km |
| X2-10GB-CX4=? | X2-10GB-CX4-A | X2 transceiver module for CX4 cable, copper, InfiniBand 4X connector |
| X2-10GB-LX4=? | X2-10GB-LX4-A? | X2 transceiver module for MMF,1310nm wavelength, SC duplex connector |
| CWDM-X2-xxxx= | CWDM-X2-xxxx-A | 10GBASE CWDM? X2 transceiver module for SMF, 40km ? ? ? ? ? ? ? ? ? (xxxx--1470/1490/1510/1530/1550/1570/1590/1610)????? |
| CWDM-X2-xxxx | CWDM-X2-xxxx-A | 10GBASE CWDM? X2 transceiver module for SMF, 80km ? ? ? ? ? ? ? ? ? ?(xxxx--1470/1490/1510/1530/1550/1570/1590/1610)????? |
| DWDM-X2-xx.xx | DWDM-X2-xx.xx-A | 10GBASE DWDM X2 transceiver module for SMF, 40km |
| DWDM-X2-xx.xx | DWDM-X2-xx.xx-A | 10GBASE DWDM X2 transceiver module for SMF, 80km |
