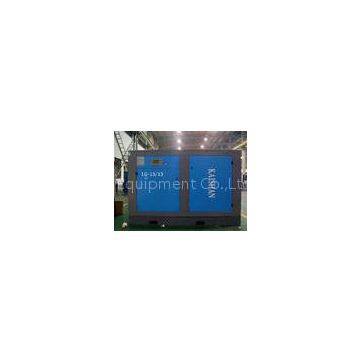

20m / min 700 CFM Rotary Screw Air Compressor / Industrial Air Compressors

Brand Name	HONGFEI		Place of Origin	China
Model Number	LG-20/8G LG-16 /10 LG-13/13

Delivery Time:7-15days
Certification:ISO

20m3 / min 700 CFM Rotary Screw Air Compressor / Industrial Air Compressors

We may provide all kinds of invert screw air compressor,the power from 5.5kw to 280kw,the air delivery from 0.6m3/min to 72m3/min,the working pressure from 0.5mpa to 1.3mpa,and with water cooling ,air cooling,belt drive or direct connecting.

1.Quick Detail:

1. Model: LG-20/8G? LG-16 /10? LG-13/13

2.Air delivery:20m3/min / 700cfm

?????????????????????? 16m3/min / 560cfm

?????????? ??????????? 13m3/min /435cfm

3.Working pressure:0.8mpa/ 8 bar/ 115psi

???????????????? ? ? ? ? ? ? ? ? 1.0 mpa/10bar/145psi

???????????????????????????????? 1.3mpa/13bar/190psi

4.Connector:G2

5. Dimention: 3000*1340*1710mm

6.weight:3900kg

screw air compressor main spare parts configuration:

screw air compressor main spare parts configuration:
Item	Parts	Brand
1	Air end??	SKK(USA)
2	Intake Valve	Hoerbiger (Austria),Hongxing
3	Solenoid Valve	CEME (Italy),Hongxing
4	Temperature sensor	kaishan original
5	Pressure sensor	Huba original (from Switzerland)
6	Motor	Dongguan/Qingjiang Motor
7	Coupling	Germany KTR or kaishan
8	Thermostat Valve	Italy VMC
9	PLC	Schneider Electric(France),Siemens,Plot
10	Minimal Pressure Valve	Hoerbiger (Austria)/kaishan
11	Air filter element	Germany MANN /kaishan
12	Oil filter element	Germany MANN /kaishan
13	Oil and gas separator element	Germany MANN/kaishan
14	Bearing	Sweden SKF (Life 60000 hours)

Remarkable Air end:Germany original-builing GHH-RAND air end adopts the third-generator dissymmetrical gear shape.The main rotor is five gears and the vice rotor is six gears.As the differences between them is small,the loss of circumfluence is small which increases the cubage efficiency by close to 20% and save the electric currency by about 25% comapared to normal screw air compressor.The rotor is dissymmetrical shape ,supported by ball bearing and rod bead bearing and operating at a low speed so it can lower the mairtanance cost and provide the air end with a longer service life Gas Intake valve:Controlledby computer ,the stable and dependable air inlet control valve can make the air displacement and power consumption of the motor chang along with the air consumption,so as to save energy and electrity ,and reduce the operating cost Oil and?air separator:Screw-shaped design of oil and gas separator is easy to uninstall and change. Separator core can separate the left oil in the process of compressing air. After separating ,the left oil will be about 1-2 ppm. this will increase the cleanness of the compressed air and lower the pollution to the compressed air and lower the pollution to the compressed air and equipment Cooling system:The designed super large cool area ensures it working normally at high temperature and hot environment. Good heat transfer performance, little flow resistance and low reque
