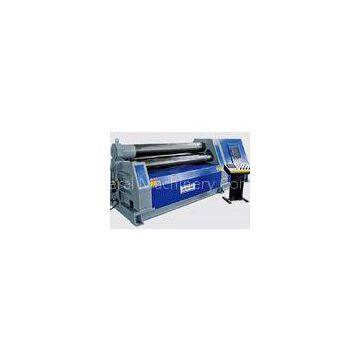

High Precision 4 Roller Bending Machine , Rolling Sheet Metal Become Arc Shape
- T/T L/C D/P D/A
- 7 days
You May Like
-
Full Hydraulic Section Bending Machine For Steel Profile From Plat To Arc
-
Vertical Profile Section Bending Machine For Cylinder Workpiece In Oil Industry
-
Double Head Steel Plate Milling Machine Synchronized Two Side Mill Equipment
-
Press Beam Moving Type Steel Plate Milling Machine Four Driving Head
-
40 Ton Fit-up Electric Welding Turning Rolls For Wind Tower Production
-
200 Tons Self-Aligned Pipe Turning Rolls For 7 Meters Diameter Tank
Product Details
| Brand Name | Pyramid | Place of Origin | China | |
| Model Number | W12NC |
Product Description
Certification:CE,ISO,TUV
?High Precision 4 Roller Bending Machine , Rolling Sheet Metal Become Arc Shape
Quick Detail:
Name: 4 Roller Rolling Machine.
Power:Hydraulic cylinder,Electric motor Effects:Pressure plateDescription:
The plate centering is easy when rolling by 4-roller rolling machine. The machine can also make straightening of the plate inclining and misalignment deformation. Also the machine can finish plate end prebending and plate rolling at one time with small remain straight edge. The 4-roller rolling machine is ideal equipment for rolling round and arc shape.
Applications:?
Widely used for the tablet volume be made sheet metal become round, curved and conical workpieces of special equipment.
Specifications
Technical datas;
The specification list on catalogue is our standard product, customer can order special product according to real needs.Product is always improved,
if technical parameter on catalogue is different from real product parameter, that will according to technical agreement,
|
Model W12 |
Max. Rolling thickness (mm) |
Max. Pre-bending thickness(mm) |
Max.rolling width (mm) |
Material plate yield tension (Mpa) |
Min Dia when full capacity(mm) |
Dia of upper roller (mm) |
Dia of lower roller (mm) |
Side roller Dia(mm) |
rolling speed (m/min) |
Main motor power (Kw) |
|
12×2000 |
12 |
10 |
2000 |
245 |
600 |
300 |
280 |
200 |
5.5 |
15 |
|
12×2500 |
12 |
10 |
2500 |
245 |
800 |
330 |
300 |
220 |
5 |
15 |
|
16×2000 |
16 |
12 |
2000 |
245 |
700 |
330 |
300 |
230 |
5 |
18.5 |
|
16×2500 |
16 |
12 |
2500 |
245 |
800 |
350 |
320 |
260 |
4.5 |
22 |
|
20×2000 |
20 |
16 |
2000 |
245 |
800 |
350 |
320 |
260 |
4.5 |
22 |
|
20×2500 |
20 |
16 |
2500 |
245 |
900 |
400 |
360 |
300 |
4.5 |
22 |
|
|
