Newest gps tracker device 3G WCDMA GPS Tracker sytem for Car / for truck / for ambulance and for bus

1.?? Product Overview

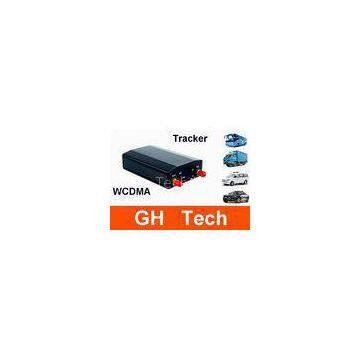

G-T009 is a 3G GPS/GSM/GPRS/WCDMA based tracking device, specially developed and designed for vehicle real-time tracking and fleet management.

G-T009?has ?inbuilt ?GPS (SIRF Ⅲ?) ?and ?GSM module ?(SIMCOM 900) ?to

obtain accurate position data. This device utilizes its GSM capability to send position data to mobile phone or server based vehicle ?tracking and fleet management

Device have voice input/output port, customer can connect a microphone to

device and hidden it somewhere in the car for listening to the cabin; also can connect a louder speaker same time, to use the device as a telephone.

Features:

?? GPRS TCP/UDP and SMS Communication

?? A GPS (Optional)

?? Track on Demand

?? Track by Time Interval

?? Upload when Direction Change

?? GSM Blind A rea Memory

?? SOS Panic Button

?? Geo-fencing A larm

?? Low Battery A larm

?? Over Speed A larm

?? Power-cut A larm

?? Engine Cut (Remote cut fuel / engine)Temperature detect

?? Fuel consumption

? Take picture

Fleet dispatching function(via SMS to send and receive command )

Support TTS

[Notes]

G-T009 is not with waterproof capacity; select the dry location to install? ?the? ?device,? ?also? ?pay? ?attention? ?to? ?moisture-proof? ?and waterproof.

G-T009 ?is based with WCDMA/GPRS/GSM and required SIM card supports GPRS data transfer function.

2. Functions

2.1 Real-time positioning

Monitoring center can directly locate the specified vehicle terminal call view,

in-car terminal will immediately return to the central monitoring platform details such? as ?vehicle ?location? data. ?Location? information ?mainly ?include: ?time, longitude, latitude, speed, location, location signs, vehicles and terminal status.

2.2 Report by timing interval

Monitoring center can specify the car back to the terminal for data transmission interval ?timing ?settings, ?factory ?default ?upload ?interval ?of ?30 ?seconds, adjustable range is 5-65535 seconds; if interval is set to less than “5 seconds \", the terminal device will automatically return to the \"5 seconds.\"

2.3 Mileage statistics

The beginning of this equipment from loading automatically calculate mileage, and mileage statistics from time to time to report to center platform, the center can take advice on car mileage table stored data; also the centers can clear the vehicle mileage data stored by platform, or be derived in accordance with set time-related mileage statistics. Mileage statistics < \"16000km\".

2.4 Stop Engine ?(oil) / Recover Engine (oil)

Monitoring center can be personalized to the designated vehicle and a remote disconnect ?the ?circuit ?or ?to ?restore ?the ?circuit, ?when ?the ?vehicle ?terminal receives ?instruction ?on ?the ?oil ?line ?or ?restore ?the ?circuit ?to ?take ?down ?oil movements.

(Note: Equipment in the implementation of action off the oil when it is the first implementation of the three sub-batch 1 seconds off the oil ?【off 15 seconds】

---- restored to the 4th when completely cut off oil line)

2.5 ?Over speed alarm

Traffic speed alarm refers to the device in accordance with the speed to allow the user to set the value of constantly monitoring the vehicle speed, when the vehicle speed exceeds preset allowable value, the device will send over speed alarm ?data ?reported ?to ?the ?Center, ?when ?the ?speed ?dropped to ?the ?default values that the abolition of alarm. Center received alarm data may confirm or cancel the alarm. Driving speed alarm set value in the 0-255 (km) range.

2.6? Terminal main power cut alarm

When the vehicle power supply was cut off the terminal will issued a power off warning in 3 seconds, at the same time start the backup battery power supply

(can ?last ?around ?4 ?hours), ?again ?automatically ?detect ?whether ?the ?alarm ?is canceled after 30 seconds, Center received alarm ?information ?could confirm and cancel alarm.

Note: The brown-out detection voltage threshold value <7V (DC).

2.7 ?Restore to factory default

To ?restore ?factory ?settings ?is ?to ?clear ?the ?main ?terminal ?settings, ?so ?that terminal back to the
