High Pressure Aluminum Alloy Die Casting Services For LED Light

?
High Pressure Aluminum Alloy Die Casting Services For LED Light
?
Quick Detail:
?

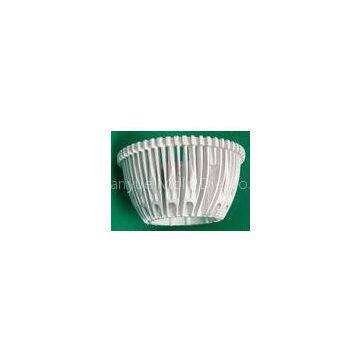

Aluminium alloy die casting for led street light
1) Material: aluminum or as required
2) Product weight: from 0.02kg to 100kg
3) Applied software for specification drawings: PRO/E, Auto Cad, Slid Work,UG, CAD/CAM/CAE
4) Secondary machining: CNC turning, Milling, Drilling,? Grinding
5) Surface Treatment: Chrome Plating, Sandblasting, Painting, Powder Coating, Anodizing
6) Products useful: Auto Parts, Furniture Parts, Pump Parts, Machinery Parts, Light fittings etc...
7) According to your drawings and samples make parts.
8) We have got ISO 9001 quality certificate & RoHs Test Report
?
?
Specifications:
?

?
?
?
?
?
?
?
?
?
?
Description:
?
This part is customized by client,apply led street light ,how does it be produce,it through die casting.
Die casting is a metal casting process that is characterized by forcing molten metal under high pressure into a mould cavity. The mold cavity is created using two hardened tool steel dies which have been machined into shape and work similarly to an injection mold during the process.
?
?

More and more part choose be die casting process, why?

1. Excellent dimensional accuracy (dependent on casting material, but typically 0.1mm for the first 2.5 cm (0.005 inch for the first inch) and 0.02 mm for each additional centimeter (0.002 inch for each additional inch).

2. Smooth cast surfaces (Ra 1–2.5 micro meters or 0.04–0.10 thou rms).

3. Thinner walls can be cast as compared to sand and permanent mold casting (approximately 0.75 mm or 0.030 in).

4. Inserts can be cast-in (such as threaded inserts, heating elements, and high strength bearing surfaces).

5. Reduces or eliminates secondary machining operations.

6. Rapid production rates.

7. Casting tensile strength as high as 415 megapascals (60 ksi).

8. Casting of low fluidity metals.

Aluminium die casting part application:

Automotive & Transportation Parts; Fitness Equipment; Mining Machinery; General Industrial Equipment; Home Appliance;

Aluminium die casting part procedure:

Drawing/Model--2D/3D Description--Confirmation of mould design→→Mould stand modeling→→Rough machining→→Vacuum heat treatment →→Fine machining→→Liner cutting processing→→Electric spark discharge→→Mould polish→→Mould assembly

Why Choose Nanyue?

?
1. Do everything in house.
2. Efficient communication.
3. Sufficient production capacity.
4. Effective and strong technical support.
5. Competitive prices with short lead time.
6. Reliable quality (ISO 9001:2000 cerified).
