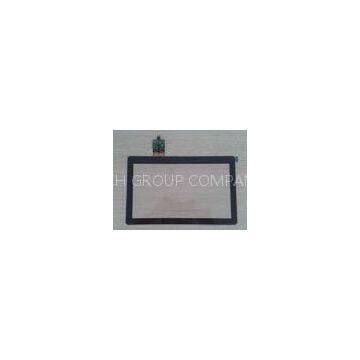

With USB Interface 7 and 10.1 Inch Standard CE, FCC Projected Capacitive Touch Panel

№

Item

Specification?

Standard?projected?capacitive?touch?panel??with?controller??(interface:USB)

1

Item?NO.

DPT-PCT-S070050

2

Detection?method

Projected?Capacitive

3

Size

7\"?

4

working?area

152.4*91.44?MM

5

Outline?dimension

185(W)*120(L)

6

Resolution

2048*2048

7

Input?method

Finger

8

Touch?action?force

30~60g

9

Operating?Voltage

3.3V?adjustable

10

Operating?current

2.5~10mA?Depends?on?IC

11

Operating?temperature

-20°C~60°C

12

Storage?temperature

-20°C~60°C?,＜90%RH；40°C~70°C,＜60%RH

13

Humidity

10%~90%RH?at?40°C,?non-condensing

14

Relative?humidity

10%~90%RH?at?40°C,?non-condensing

15

Response?time

<35ms

16

Transparency

≥82%?depends?on?the?quantity?of?layers

17

Surface?hardness

≥7H

18

Material?structure

GFF

19

Thickness

1.35mm

20

Light?transmission

92%~100%

21

Durability

Scratch-free;?More?than?50,000,000?touches?in?one?location?without?failure

22

Drivers?available

Windows?2000,Windows?XP,Windows?NT,Linux,Mac

23

Certificates

CE,?FCC,?RoHS

24

Working?environment

Under?sunlight,indoor?and?outdoor

25

Finger?Touch?life

≥35,000,000?times

26

Warranty

1?year
