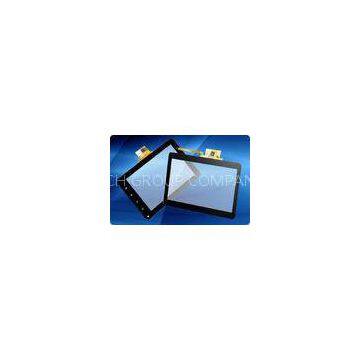

8 Inch Projected Capacitive Touch Panel with I2C interface, Glass+ Film or Glass+ Glass

№

Item

Specification?(Some?index?value?will?be?adjusted?according?to?customizated?requirements)

1

Item?NO.

DPT-PCT-0800XX

2

Detection?method

Projected?Capacitive

3

Size

8\"

4

Outline?dimension(mm)

204.06*154.06mm(adjustable?if?need)

5

View?area(mm)

163.32*122.86?mm(adjustable?if?need)

6

Active?area(mm)

162.32*121.86?mm(adjustable?if?need)

7

Aspect?ratio

16:9?or?4:3

8

Resolution

1024*1024

9

Input?method

Finger

10

Touch?action?force

30~60g

11

Operating?Voltage

3.3V?adjustable

12

Operating?current

2.5~10mA?Depends?on?IC

13

Operating?temperature

-10°C~60°C

14

Storage?temperature

-15°C~40°C?,＜90%RH；40°C~70°C,＜60%RH

15

Humidity

10%~90%RH?at?40°C,?non-condensing

16

Relative?humidity

10%~90%RH?at?40°C,?non-condensing

17

Response?time

<10ms

18

Transparency

≥82%?depends?on?the?quantity?of?layers

19

Surface?hardness

≥5H

20

Material?structure

Glass+?Film?or??Glass+?Glass

21

Thickness

1.6mm?adjustable?Glass(1.1mm)?+Top?ITO?Film(0.125mm)?+Bottom?ITO?Film(0.125mm)

22

Light?transmission

92%~100%

23

Durability

Scratch-free;?More?than?50,000,000?touches?in?one?location?without?failure

24

Drivers?available

Windows?2000,Windows?XP,Windows?NT,Linux,Mac

25

Certificates

CE,?FCC,?RoHS

26

Working?environment

Under?sunlight,indoor?and?outdoor

27

Finger?Touch?life

≥35,000,000?times

28

Warranty
