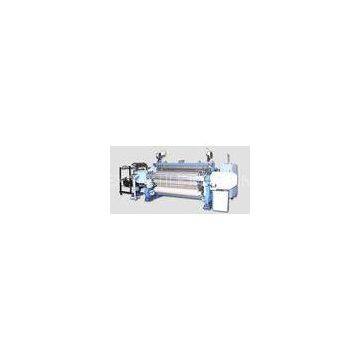

400 - 550 Rpm Full Electronic High Speed Rapier Loom Machine Staubli Dobby
- T/T L/C D/P D/A
- 7 days
You May Like
-
Electronic Jacquard Looms , High Speed Rapier Loom Textile Machinery
-
Automatic Shuttless Flexible High Speed Rapier Looms With Mechanic Dobby
-
High Speed Rapier Loom Weaving Machine For Cotton Wool Chemical Fiber Mechanic Dobby HYRL-1724
-
Full Electronic Rapier Loom, High Speed Flexible Weaving Loom Machine Automatic Loom HYRL-1726
-
High Speed Rapier Loom With Electronic Jacquard Shuttless Loom
-
High Efficiency Glass Fiber Flexible Rapier Loom For Weaving Plain Cloth Twills Textile Machinery
Product Details
| Brand Name | Wiltoptex | Place of Origin | China | |
| Model Number | HYRL-1728 |
Product Description
400 - 550 rpm Full Electronic High Speed Rapier Loom Machine staubli Dobby ? Detailed Product Description
it is absorbed?picanol? technology,adopts cam beating up full electronic ,dobby ,let off ,take up all are electronic.
HYRL-1728??Rapier Loom is designed and manufactured to meet the requirements of? the weaving industry on the basis of the HYRL-1724?. It is more flexible and applicable .
This loom adopts rotary electronic dobby , fully?electronic ?let-off and take-up system?, suspension guide hook . Perfect electronic control, menu-type program, and practical memory card. During the weaving it allows?to have as many as 8 weft densities,and accordingly 8 settings of tension. For the?special loom and necktie jacquard loom it is possible even to set a warping-stop function,so this loom is much more versatile and flexible in use.
Main specification:
|
Reed width |
190cm |
210cm |
230cm |
280cm |
360cm |
|
Max. weft insertion rate (m/min) |
530-685 |
588-714 |
644-782 |
650-875 |
750-1008 |
|
Speed (rpm) |
500-550 |
500-550 |
480-530 |
450-500 |
400-450 |
|
Yarn range |
Cotton6NE—80NE,wool 10Nm—135Nm,chemical fiber 900D—70D |
||||
|
Shedding |
Mechanical dobby or electronical dobby |
||||
|
Weft insertion form |
Separate reeds positively driven by conjugate cams at both ends |
||||
|
Beating-up motion |
Separate sley bars positively driven by close conjugate cams at both ends |
||||
|
Let-off motion |
Contionous let-out of warp by compound regulating system |
||||
|
Take-up |
Positive continuous take-up motion with weft density regulators |
||||
|
Weft selection |
Electrical color choosing device; max.8 weft colors. |
||||
|
?Diameter of warp beam |
800 mm or 1000mm |
||||
|
Warp stop |
6 rows electric warp stop |
||||
|
Weft stop |
With piezoelectric sensor control weft stop |
||||
|
Power consumption |
4.8KW |
?W can manufacture according to customer\'s requirements.
