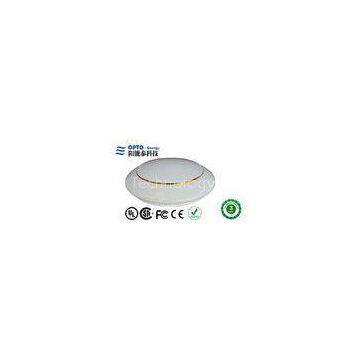

Anti Glare SMD 2835 Recessed 7W Led Ceiling Light with Dia 220M Round Ceiling Led Light
- T/T L/C D/P D/A
- 7 days
You May Like
-
3000k - 6500k Recessed Led Home Ceiling Lights for Traditional Replacement
-
80Ra 26W Kitchen Recessed Led Ceiling Lights with PF 90% 132 pcs
-
Round 3 W COB Led Ceiling Light 270lm / surface mounted led ceiling down light
-
5W COB Led Ceiling Light / Led Downlight with Constant Current Driver
-
Cree 3\" 10W COB Traditional Led Ceiling Light Repalcement with High Purity Aluminum Lamp Housing
-
Restaurant Dimmable COB LED Led Office Ceiling Light / Warm White led downlights
Product Details
| Brand Name | Opto-Energy Recessed Led Ceiling Light | Place of Origin | China | |
| Model Number | OE-D220-7W48E |
Product Description
Certification:CE, SAA, Rohs
Anti Glare SMD 2835 Recessed 7W Led Ceiling Light with Dia 220M Round Ceiling Led Light
Specification:
SMD2835 7W Recessed Led Ceiling Light
Led Qty:48pcs
Diameter:220mm
Finished Size: Dia 260*17mm
Flux: ≥500lm
Input Voltage: AC85-265V
Color: Warm White/ Cool White/ Natural White
Operating Humidity: 20%-90%
Working Temperature: -20℃～+45℃
Cover Materials: Acrylic( Uniform Color/Anti Glare)
Bottom Base Diameter: Dia220mm, 260mm, 320mm, 400mm optional
Viewing Angle: 160 Degrees
CRI:≥80Ra
LED: SMD2835
Led Driver: Isolated Led Driver
Power Factor≥90%
Led Life span: Above 30000 Hours
Advantages:
High Brightness SMD 2835 as Lighting Source
High Power Factor
Fast & Easy to install Led Ceiling Light
Energy saving up 85% compare with Traditional Recessed Ceiling Lights
Cheap price Led Ceiling Light
2014 Hot Selling for Led Recessed Ceiling Light?
Technical Parameter
|
Item |
Dia(mm) | Technical Parameter | |||
| 220mm | 260mm | 320mm | 400mm | ||
| Input Voltage | V | AC85-265V | |||
| Frequency | Hz | 50/60Hz | |||
| Input Power | W | 7±1 | 13±1.3 | 17±1.8 | 25±2.5 |
| Power Factor | PF | ≥0.9 | ≥0.92 | ≥0.92 | ≥0.92 |
| THD | % | ≤15% | ≤15% | ≤15% | ≤15% |
| Led Driver | Isolated | ||||
| Power Efficiency | % | 88 | 88 | 90 | 90 |
| Output Voltage | V | 21-24 | 36-42 | 24-28 | 36-42 |
| Current Output | mA | 300 | 300 | 600 | 600 |
| Led Type | SMD2835 | ||||
| Led Qty | pcs | 48 | 72 | 99 | 132 |
| Luminous Flux | LM | ≥650 | ≥1050 | ≥1450 | ≥1900 |
| CRI | Ra | ≥70 | ≥70 | ≥70 | ≥70 |
| Color Temperature | K | 3000-6500k | |||
| Angle | ° | 160 | 160 | 160 | 160 |
| Bottom Size | mm | ￠220*17 | ￠260*17 | ￠320*17 | ￠400*17 |
| Finished size | mm | ￠260*90 | ￠300*100 | ￠360*110 | ￠440*120 |
| Net Weight | kgs | 0.5 | 0.6 | 0.8 | 1.3 |
| Package size | mm | 31*11*31 | 31*11*31 | 37*12*37 | 46*13*46 |
| CTN Measure | mm | 68*33*66 | 68*33*66 | 74*39*78 | 67*48*94 |
Application:
Good Replacement for the traditional Ceiling Light board
In door lighting places
Schools, Meeting Rooms, Show Rooms, Business centers, offices, Commercial Lighting,
Residential Lighting, kitchen Led Ceiling Lighting etc.
Our Led Ceiling Lihgts?Good Replacement for Traditional Retrokit Kits
