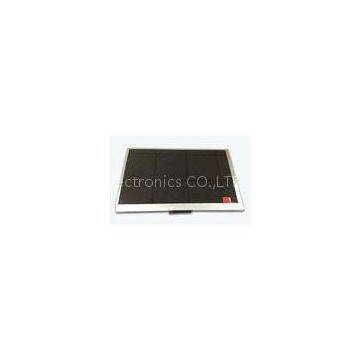

500nits 800x480 Innolux LCD Screen ZJ070NA-01E with RGB vertical stripe
- T/T L/C D/P D/A
- 7 days
You May Like
-
400nits ZJ050NA-05B Innolux LCD Screen 5 inch TFT Touch Panel
-
ZE065NA-01B 6.5 inch Innolux LCD screen digital Touch Panel 800x480
-
9 inch TFT led Innolux LCD screen 1280x800 HJ090NA-01K for tablet pc
-
Custom 1280x800 9inch LCD Panel HJ090NA-01L Innolux LCD Monitor
-
HJ090NA-03B LVDS 9 inch TFT lcd module 1280x800 Touch Screen Display
-
High Definition Visual Doorbell CMO LCD Panel / LCD Screen 250nits 8 Inch
Product Details
Brand Name | Innolux | Place of Origin | China | |
Model Number | ZJ070NA-01E |
Product Description
Certification:CE ,ROHS
500nits 800x480 Innolux LCD Screen ZJ070NA-01E with RGB vertical stripe
Quick Detail:
1. Lcd size:7\"
2. Resolution: 800 × 3(RGB) × 480
3. Brightness: 500nits
4. Weight: 113g
5. Backlight: LED
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
LCD size |
7\" |
Resolution |
800 × 3(RGB) × 480 |
Color Pixel Arrangement |
RGB vertical stripe |
Display Mode |
Normally white,TN |
dot pitch |
0.0642(W) × 0.1790(H) mm |
module size |
164.9(W) ×100.0(H) ×3.35(D) mm |
active area |
154.08(W) × 85.92(H) mm |
Response Time (Tr+Tf) |
15ms |
Brightness(cd/㎡) |
500 nit(typ) |
contrast ratio |
500:01:00 |
?Interface |
digital |
module weight(g) |
113g |
BL unit |
LED |
Surface Treatment |
Anti-Glare |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel\'s brightness.
