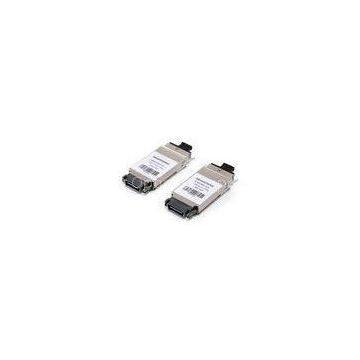

SMF GBIC Transceiver Module
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | AscentOptics/Neuter, OEM | Place of Origin | China | |
| Model Number | AOG-524-R70 |
Product Description
Certification:CE,FCC,RoHS
SMF GBIC Transceiver Module 1.25G 1550nm 70km For Single-Mode Gigabit Ethernet
?
Specification:
|
P/N |
AOG-524-R70 |
|
Datarate |
1.25G |
|
Wavelenth |
1550nm |
|
Distance |
70km |
|
Transmitter |
DFB |
|
Receiver |
PIN |
|
Media |
SMF |
|
DDM/DOM |
Digital (optional) |
|
Connector |
SC |
|
Application |
GE/FC |
|
Operating Temperature |
0℃~ +70℃ |
|
Voltage Supply |
3.3V / 5V |
|
Certification |
CE/FCC/RoHS/TUV/UL |
|
Brand |
AscentOptics/Neuter, OEM |
GBIC 1.25G 1550nm 70km single-mode Gigabit Ethernet
?
Description:
Gigabit interface converter?(GBIC) is a standard for?transceivers, commonly used with?Gigabit Ethernet?and fibre channel?. By offering a standard,?hot swappable?electrical interface, one gigabit port can support a wide range of physical media, from copper to long-wave?single-mode optical fiber.
The AscentOptics`s GIBC (Gigabit Interface Converter) is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. AscentOptics`s GBICs can be interchanged on a wide variety of Switches and Routers and can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, 1000BASE-CWDM interfaces on a port-by-port basis.
Applications
1.0625 Gb/s Fibre Channel 1.25 Gigabit Ethernet
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM? Customized label?
5. Keep stock,Fast delivery
