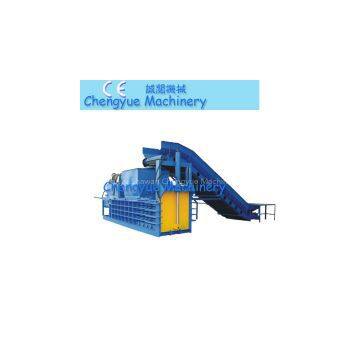

Semi-Automatic Powerful Hydraulic Press Baling Machine for Used Clothing Cotton

BYB-150Ton Semi-Automatic Baler uses hydraulic loop system and could choose manual or PLC automatic controller operation. It’s suitable for baling the incompact materials , especially plastic bottles and waste paper to recycle.

Main technical parameters:

1. Input & output

Raw material: waste paper, carton, PET bottle

Completed product: waste paper bale, carton bale, PET bottle bale

Output capacity: 3-4bale/hr.

2. Energy consumption:

Electricity consumption:

Main power:37kw

Conveyor power:7.5kw

Cooling system:1.5kw

Qty. of labors: 1-2 persons

3. Basic Infrastructure

3.1 Electricity supply: 380V/50H,200V/50HZ,440V/60Hz,220V/60HZ(option)

3.2 one part of the conveyor(3.5meter long) need to put in the group(about 1.2meter deep)

3.3 Necessary lifting plants for loading and unloading machines during install nation and testing

Model: BYB-150T

Baler size: (700-1500)*1100*830mm
work pressure: 150Ton
bale weight: about 450kg-500kg
main power: 37kw
conveyor power: 7.5kw
overall dimension: 7200*3020*2000mm
total weight: 14000kg+5000kg(conveyor)
electric panel: Japanese appliance
conveyor: compose by iron plate
size: 3.5meter in the ground
oil tank capacity: 1530kg(68# hydraulic oil)
cooling system: air cooling

Characteristic feature:

1.        BYB machine uses hydraulic loop system and could choose manual or PLC automatic controller operation.

2.        The max oil pressure is 21Mpa(210kg/cm2).

3.        The ground to placed the machine should be smooth.

4.        Active cutter(V style SKD-11 durable steel cutter).

5.        The dimension of feeding hooper and bale can be designed according to customers’ requirement.

Guarantee and after-sales services:

One year guarantee period. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide them at cost price.

Payment:

30% of total amount should be paid in advance, and the balance before delivery.
