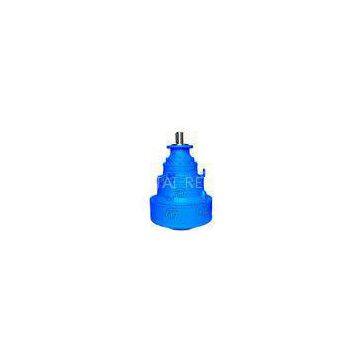

HN Series Planetary Gear Reducer Units HN9 - 20 Roller press drives

Quick Details:

Power range:0.4～ 9551 KW ? ?

Ratio rang: I = 3.5～15000

Torque rang: 450～11205000 N.m ??

Input Speed: 750rpm – 1800 rpm

Output Speed: 0.1 rpm- 350 rpm

Mounting position: foot mounted, ?hollow shaft mounted, ?solid shaft mounted

Output shaft: hollow shaft , solid shaft

Gearcase housing: HT cast Iron Housing suitable for outdoor installation

? ? ? ?Backstop: Available on all frame sizes With/without anti-back Backstop

Descriptions:

With the?HN Series Planetary Gear Reducer?unit series, HENGTAI provides also standardized gear unit solutions for higher

power rating ranges in the proven HENGTAI quality. With 27 sizes and seven basic types the PLANUREX

series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1.

The specific requirements to be taken into account for bucket wheel, slewing gear and travelling gear drives

in the field of materials handling have already been realized in standardized products. Get your benefit from

the advantages of a standard product available for your industry.

Products benefits:

Low weight and compact, place-saving design owing to a load sharing system

Saving operating expenses owing to high efficiencies and optimized maintenance intervals

Easy to combine with other gear units, e.g. primary helical, worm, bevel, or bevel-helical gear units

Low-noise running owing to low rolling and sliding speeds at the tooth flan

Storage:

1: Pls do not store in outdoor.

2: Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly

? ?touch the floor.

WARRANTY:

HFT guarantees the products sold for one year from the date of delivery.

Warranty is limited to repair or replacement, free at our plant, of defective parts?due to an ascertained

defect of material or manufacture. The parts replaced remain our property. All other compensation is

excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack

of use of the goods purchased.

Applications:

Specifications:

Model: HN2B, HN2Y, HN2W, HN3B, HN3Y, HN3W

Sizes:9,10,11,12,13,14,16,17,18,19,20

THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
