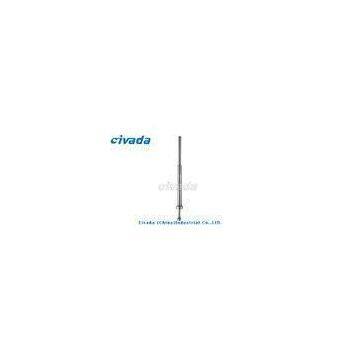

high precision SKH 51 Mold Ejector pins MISIMI for plastic injection mold

Brand Name	CIVADA		Place of Origin	China
Model Number	EJ-S018

Delivery Time:5~7workdays after the order confirmed
Certification:IAF

high precision SKH 51 Mold Ejector pins MISIMI for plastic injection mold

1. Material?

SKH?51--?JIS?High?Speed?Steel??(?M2?)(?1.3343?)?equivalent SKD?61--?JIS?Die?Steel??(?H13?)(?BH13?)(?STD61?)?(?1.2344?)?equivalen 65?Mn?,?SUJ2?,?HSS?,?etc?

2. Hardness?

58?to?62?HRC?or?depends?on?processing?materials

3.?Specifications?

Standards?:?MISIMI?/?DIN?/?AISI?etc. Mounting?method?flange?fixing? Further?dimensions,?lengths?and?materials?available?on?request Customized?sizes?are?accepted Service:?OEM?available?,?and?standard?with?stock Closest?tolerance?:?shaft?0?~?-?0.01?mm?,?head?0?~?-?0.05?mm? Polishing:?can?make?close?to?Ra?0.4?standard?is?R0.8 Good-quality?and?precision Nitrogen?treatment?to?improve?the?hardness? More?products?can?be?produced?according?to?DANLY?/?DME?/?HASCO?/?TOHATSU?/?FIBRO?/?AGATHON?/?STRACK?/?PEDROTTI?/?RAYMOND?/?FUTABA?/?SANKYO?/?PROGRESSIVE?/?RABOURDIN?,?etc.

Application?

Plastic?injection?mold?components? Ejector?pins?are?used?to?eject?completed?parts?from?die?moulds?and?are?commonly?used?in

?the?plastics,?automotive,?aeromotive?and?medical?industries,?amongst?others.?A?blade?shape?is?used?when

?there?is?only?a?small?surface?area?on?the?finished?part.?They?are?also?known?as?knockout?pins,?knock-out?

pins?or?KO?pins.?When?the?mould?is?opened,?the?pins?extend?into?the?mould?cavity,?push?the?part?out,?and?

then?retract,?allowing?the?mould?to?close?and?be?refilled.

Important?factors?to?consider?when?selecting?ejector?pins?are?corrosion?resistance,?

durability,?tolerance?and?tensile?strength.?Ejector?pins?can?be?made?with?a?variety?of?treatments,?which?

affect?the?hardness?of?the?pin.?By?choosing?the?right?ejector?pin?for?the?application,?the?lifespan?and?

durability?of?the?pin?will?be?enhanced.

Through?hardened?pins?are?good?all-purpose?steel?pins?that?are?heat-treated?to?be?uniformly?

hard?throughout?their?diameter.?They?are?often?used?for?injection?moulding?of?plastics?and?can?be?used?in?

cooler?moulding?environments?below?200°C.

Case?hardened?pins?are?nitrided?pins?that?are?suitable?for?die?casting?and?can?be?drilled?or?

tapped.?They?can?be?used?at?temperatures?above?200°C?and?are?quite?durable.?They?can?chip?when?

compared?to?through?hardened?pins?but?have?a?greater?life?expectancy?at?higher?temperatures.

Blackened?or?oxidated?ejector?pins?are?designed?for?extremely?high?temperature?working?

environments.?They?can?be?used?at?temperatures?from?about?600-1000°C.?These?ejector?pins?have?a?self?

lubricating?surface?coating?that?allows?them?to?be?used?at?these?high?temperatures.

Ejector?pins?can?be?further?enhanced?by?our?TiN?TiCN?HW?coating?and?other?coatings?which?

protect?them?and?make?them?more?durable.?These?coatings?work?by?reducing?friction?so?that?the?pins?

become?more?wear?resistant?and?the?ejection?of?the?part?becomes?more?consistent.

Ejector?sleeves?are?hollow?and?can?be?used?to?protect?and?guide?the?pin,?further?enhancing?

its?lifespan.

Machinery?&?Equipments

CNC?machining?center;?CNC?lathe;?Normal?lathe;?CNC?milling?machine; General?punching?machine,?CNC?turning?center;?Wire?EDM,?etc.? And?we?also?can?offer?4?or?5?axis-CNC?center?processes. General?milling?machine;?General?drilling?machine;?General?planning?and?grinding?machine?

?
?Further?Information

Testing? machine	Digital?Height?Gauge,?caliper,?Coordinate?measuring?machine,?projection?machine, ?roughness?tester,?hardness?tester?and?so?on.
QC	?1)?Technicians?self-check?in?production ?2)?Engineer?spot?check?in?production ?3)?QC?inspects?after?mass?production?finished ?4)?International?sales?who?were?trained?the?technical?know-how?spot?check?before?shipping
Main?Markets	North?America,?South?America,?Eastern?Europe?,?West?Europe?,?North?Europe,? South?Europe,?South?Asia,?Africa?Africa

Packing?&?Delivery?
?

	Package	Coated?with?anticorrosive?oil,?packed?in?carton?box? with?bubble?wrap,?together?with?QA?report.
Express	DHL,?FedEx,?UPS,?TNT,by?Sea?.

?
