Remote Street Light Intelligent Control System REX-C-IT

REX-C-IT?Intelligent Control System

Main Functions:

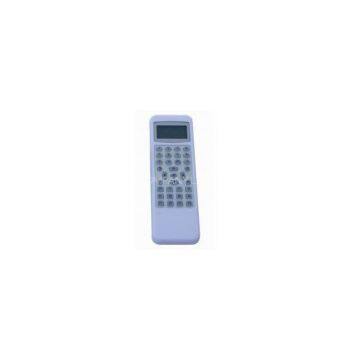

The remote controller can control 15 groups of lights in brightness, color and ON/OFF.It can work together with the wall switch.Instruction for main keys like below:
\"IP\": set group number
\"S1\": save and confirm setup of group number
\"BR\": set brightness value
\"S2\": save and confirm setup of brightness value
\"C1\", \"C2\", \"C3\", \"C4\": the preset brightness value by manufacturer
\"B1\", \"B2\", \"B3\", \"B4\": the preset brightness value by user.The user can adjust the value of them.
\"TM\": set time for timing off
\"OK\": save setup

Set group Number: (During installation)
Switch on the power of the light, keep pressing the button on the light, press\"IP\", choose group number from 1-9, A-F, and press \"S1\" to save the setup, then loosen the button on the light.

Adjust Brightness: (Take group D for example)
Method 1: press\"IP\", press\"D\", press\"△\", \"▽\"
Method 2: press\"IP\", press\"D\", press\"C1\", \"C2\", \"C3\", \"C4\"to choose preset birghtness by manufacturer.
Method 3: press\"IP\", press\"D\", press\"B1\", \"B2\", \"B3\", \"B4\"to choose preset brightness by user.(Take \"B1\"for example, fristly press\"B1\", then press\"BR\", input brightness value 01-99, press\"S2\"to save the setup)
Notice:\"0\"represents all the 15 groups.If you do not remember which group the lights are in, just use\"0\".Timing OFF
Press\"TM\", input time(0010-2350), press\"OK\"to save the setup.If the input time is 0030, the light will be off 30 minutes later.
RGB control
C1, red.C2, green.C3, blue.C4, mode of color change.F1/F2, adjust the speed of color change(01-99 seconds).
